XF-E 09

E-Field Probe 30 MHz up to 6 GHz

Send enquiry Datasheet
  • XF-E 09, E-Field Probe 30 MHz up to 6 GHz

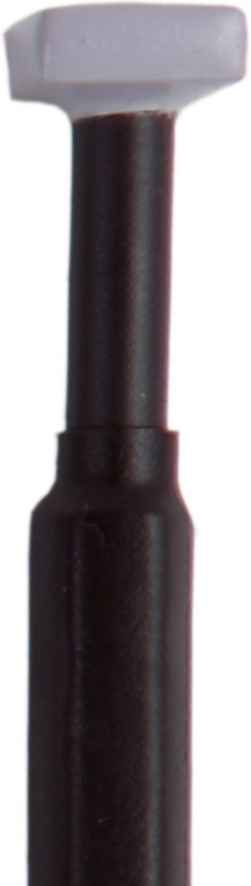

  • Probe head
    Probe head
XF-E 09, E-Field Probe 30 MHz up to 6 GHz Probe head
  • XF-E 09, E-Field Probe 30 MHz up to 6 GHz
  • Probe head
Short description

The electrode on the probe head of the XF-E 09 detects electrical fields which, for example are decoupled above the IC’s surface. The probe’s resolution allows for measurements with a distance of 0.5 mm to 10 mm above an assembly.

Technical parameters
Frequency range 30 MHz ... 6 GHz
Probe head dimensions: ≈ (10 x 10) mm
Connector - output SMA, female, jack

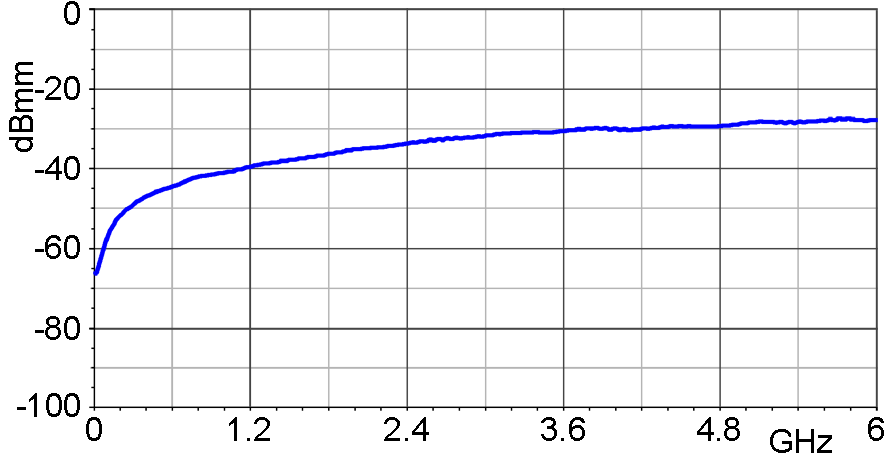

Frequency response [dBµV] / [dBµV/mm] Frequency response [dBµV] / [dBµV/mm] Frequency response [dBµV] / [dBµV/mm]

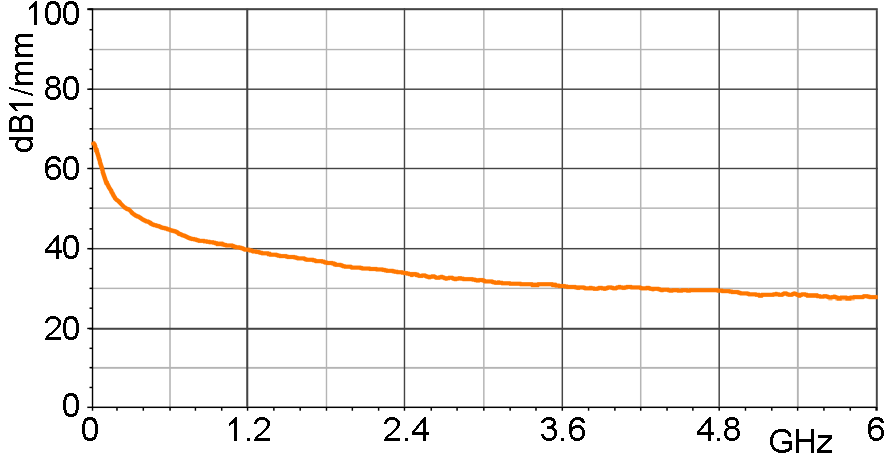

E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV]

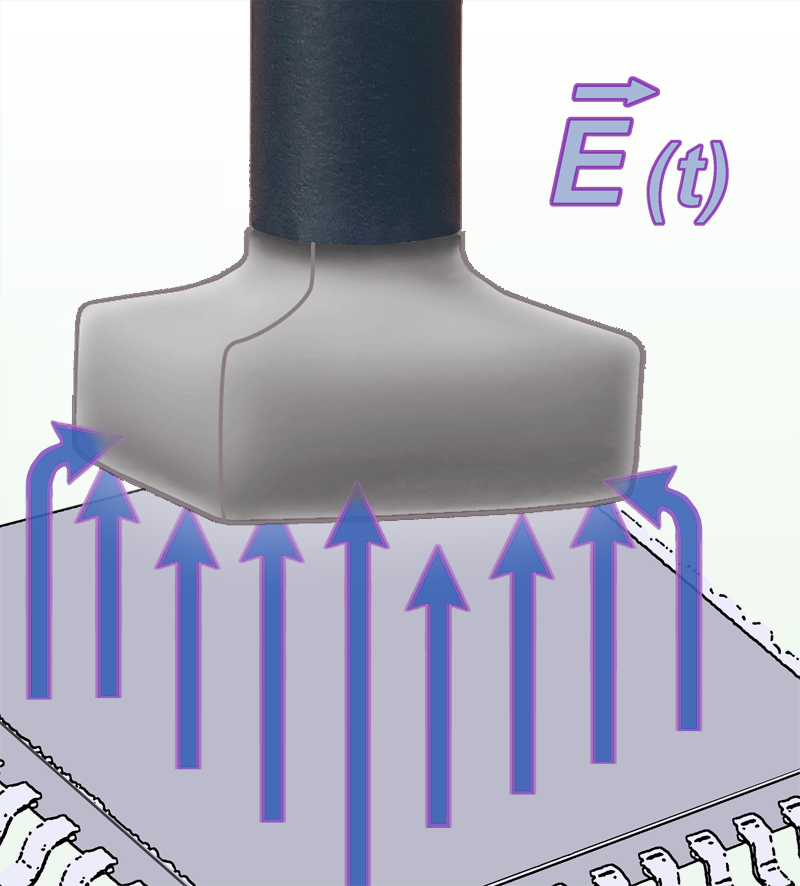

Measuring principles Measuring principles Measuring principles
