Measurement Technology for the Development Stage
The measurement technology for the development stage enables the detection of magnetic and electric field sources at your PCB directly at the workplace.

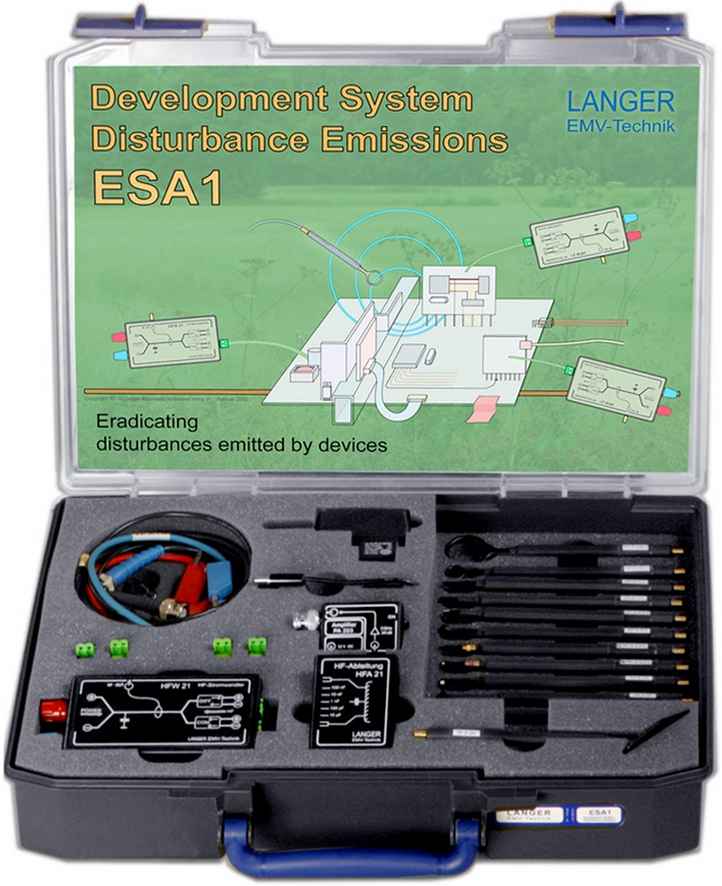

Emission Development System
The ESA1 is a system of EMC tools for measuring the interference of assemblies and devices. The CS-ESA software allows the developer to quickly and comprehensively suppress interference affecting the DUT. Interference measurements taken during the development stage with ESA1 are proportional to the …

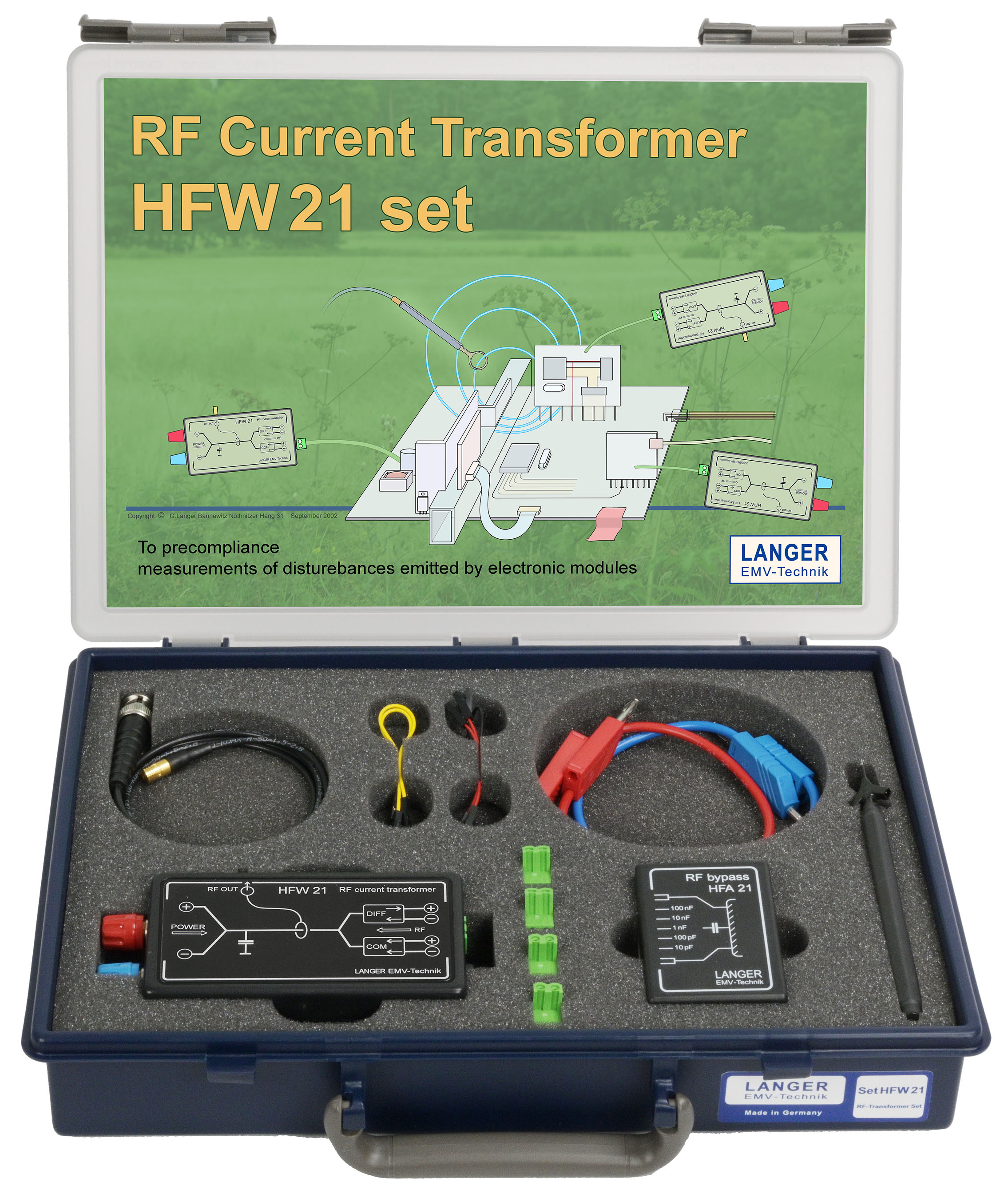

HFW 21 set
RF Current Transformer 100 kHz up to 1 GHz
The RF-current transformer measures high-frequency currents at the DUT's lines. For reproducible measurements a metallic ground plane is needed as a reference plane. The small-scale measurement set-up at the developer's workspace allows for fast analysis of EMC measuring effects.

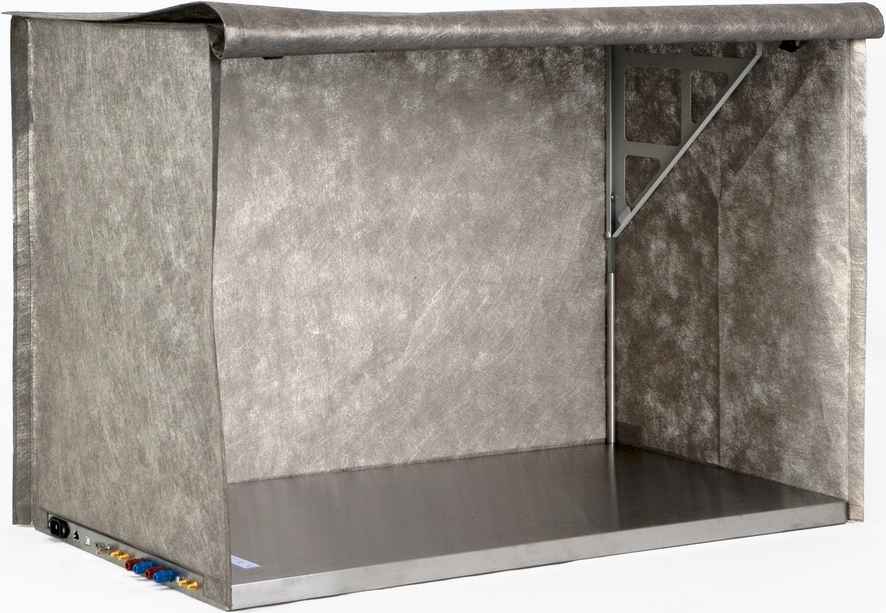

Shielding Tent (900 x 500x 400) mm
The Z23-1 shielding tent consits of a frame with a shielding cover and the GP 23 ground plate. It allows for shielding of the measurement set-up against external RF fields or for shielding the measuring devices, e.g. during ESD tests. From the front, the tent can be easily and quickly opened or clos…

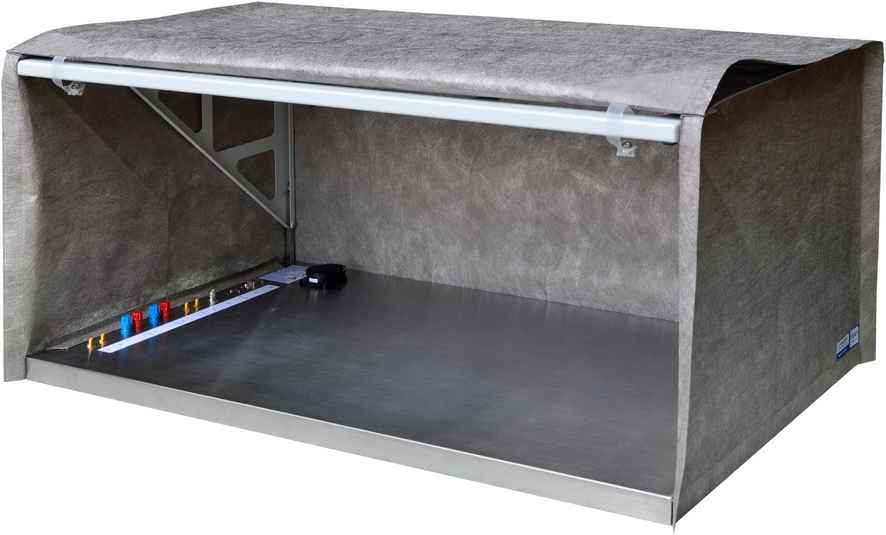

Shielding Tent (900 x 500 x 650) mm
The Z23-2 shielding tent has a higher working space than the Z23-1 shielding tent. Therefore, larger devices under test or measuring devices can be used inside the tent. It allows for shielding of the measurement set-up against external RF fields or for shielding the measuring devices, e.g. during E…

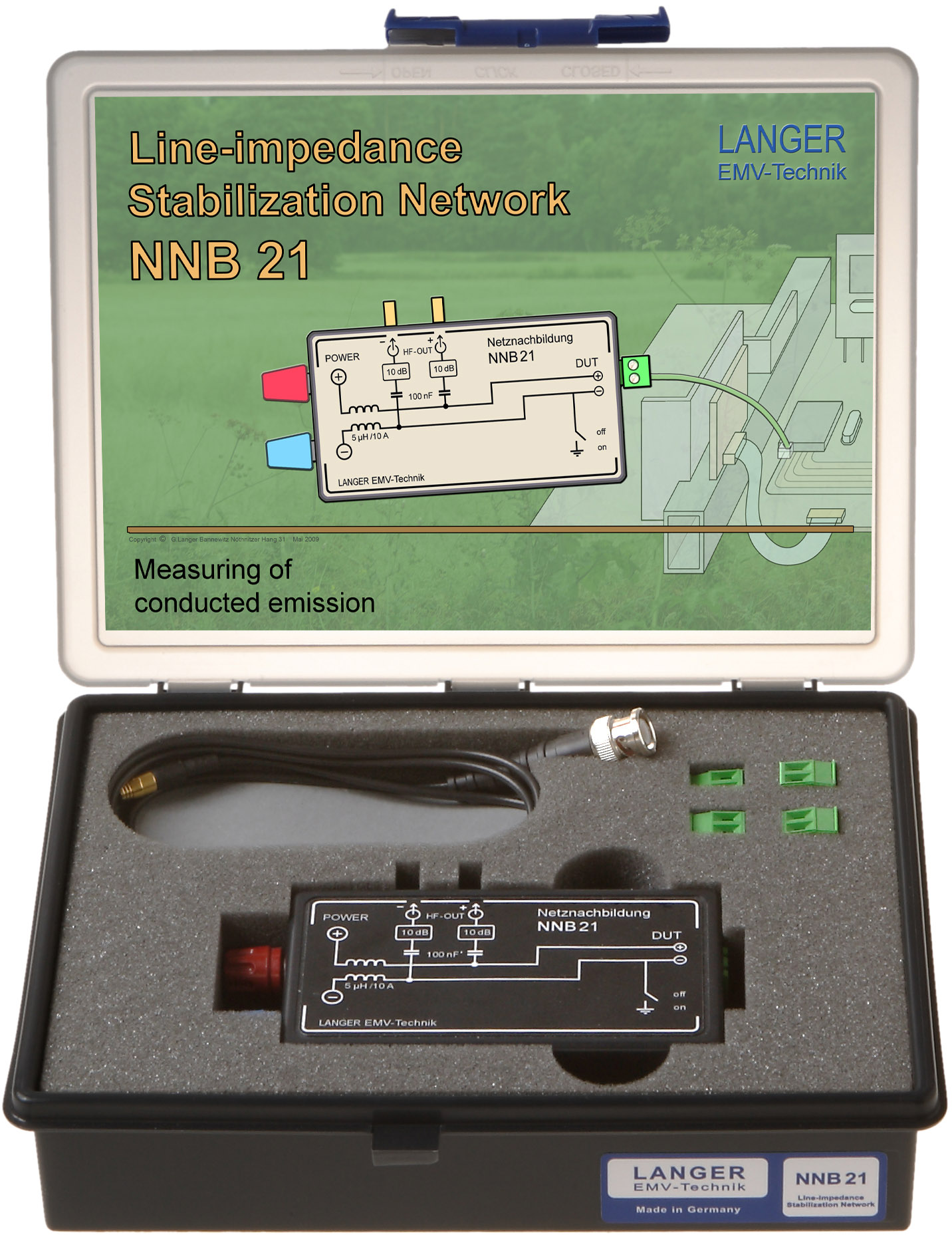

NNB 21 set
Line Impedance Stabilisation Network
The NNB 21 line impedance stabilisation network is designed for measuring conducted disturbance emission of a device under test according to the standard CISPR 25/ISO 7637. It measures the RF interference, which couples into the vehicle electrical system. Measurements during the development in a fr…
