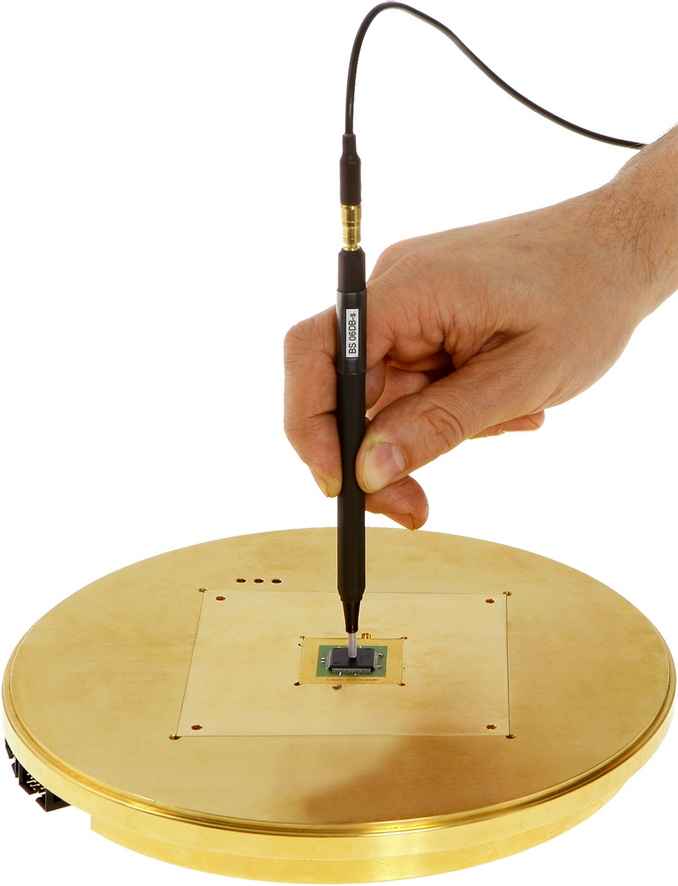

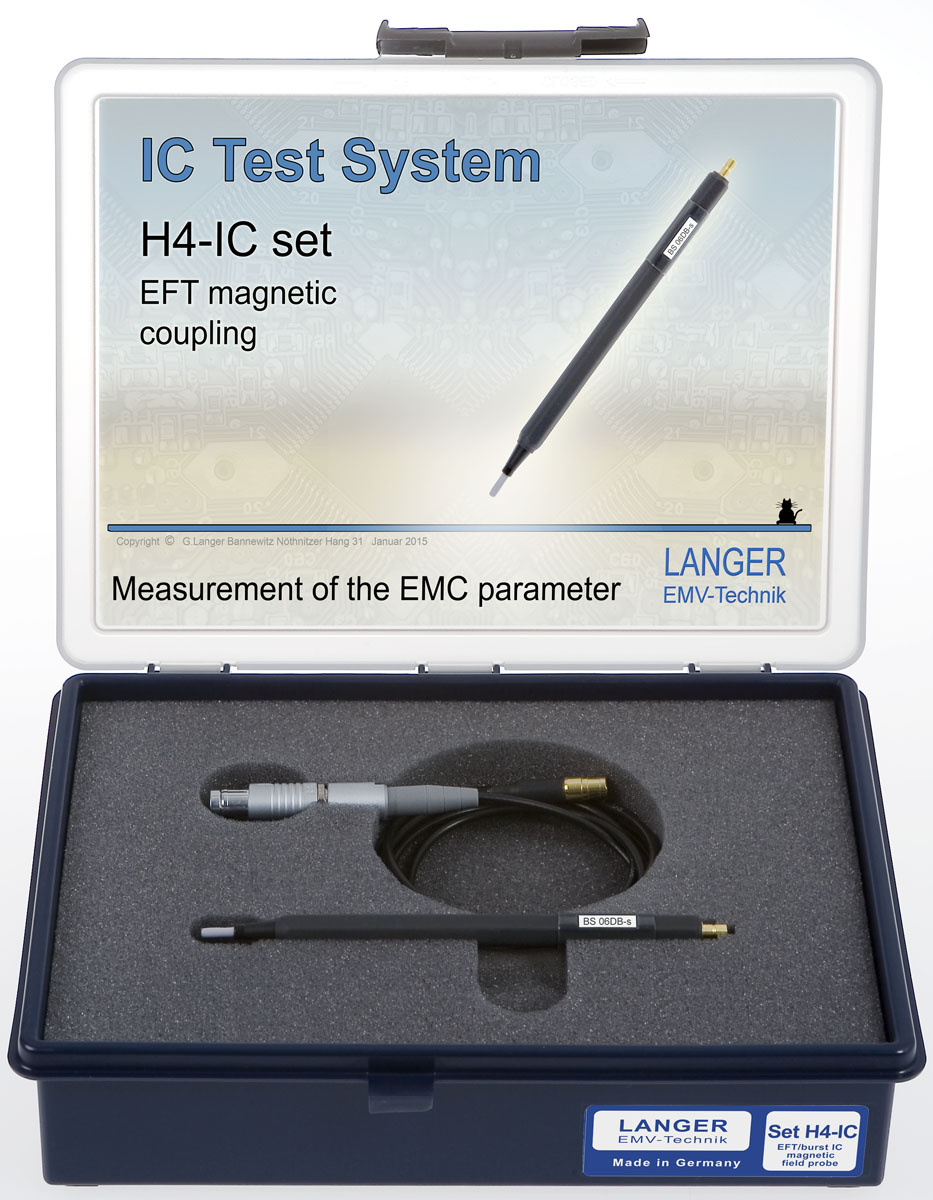

The BS 06DB-s magnetic field source is used to generate magnetic EFT/burst fields. An EFT/burst generator (IEC 61000-4-4) supplies the field source with an EFT/burst current via an RF cable. The field source generates high magnetic fields (approx. 200 mT) in very small spaces (2.54 mm²). It is thus ideal for coupling the field into ICs. The field source can be inserted into a scanner or can be guided by hand. It has a SMB output.

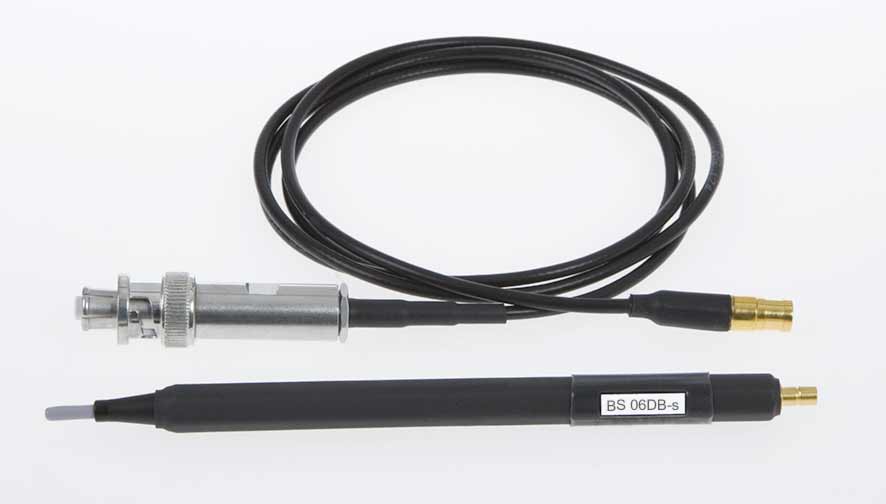

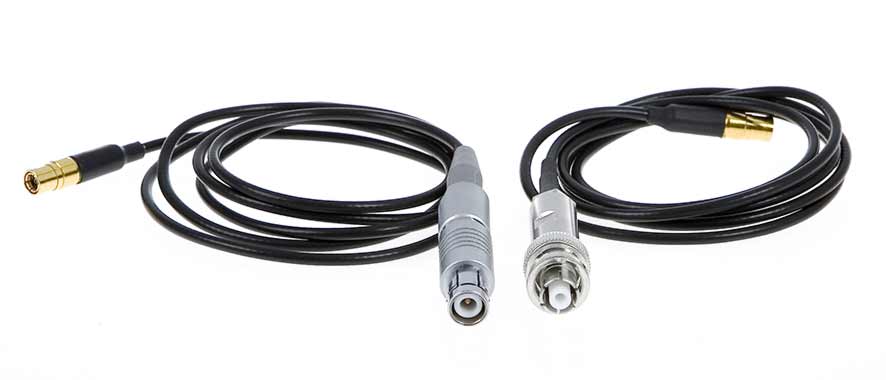

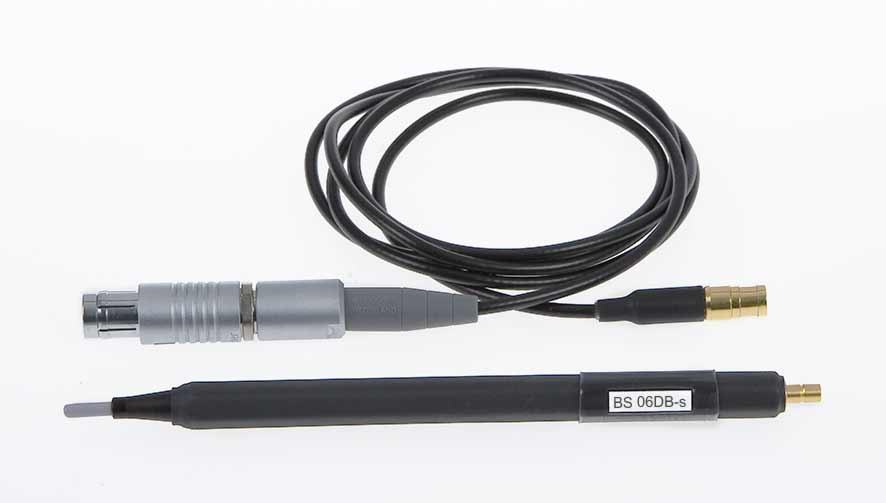

The connection cable for the magnetic field source is available with an SHV connector (HV SHV-SMB 1m) or with a Fischer connector (HV FI-SMB 1m; a S103A023 Fischer connector). Please specify which cable/connector when placing your order.
Scope of delivery
|BS 06DB-s EFT/Burst Magnetic Field Source|
|Frequency range||0...66 MHz|
|Generated magnetic flux density||2.37 mT/A|
|Probe head dimensions||Ø 1.8 mm|
|Max. generated magnetic flux density||200 mT|
|Connector - output||SMB, female, jack|
|Max. Burst-voltage||4 kV|
Scope of delivery details
The BS 06DB-s magnetic field source is supplied by an EFT/burst generator (IEC 61000-4-4) via an HV cable and is used to generate a magnetic EFT/burst field which emerges vertically from the tip of the field source in a bundle. The BS 06DB-s can be used for IC tests in combination with the ICS 105 I…
