It is recommended to use the shunt with the GND 25 ground plane and the GNDA 02 ground adapter.

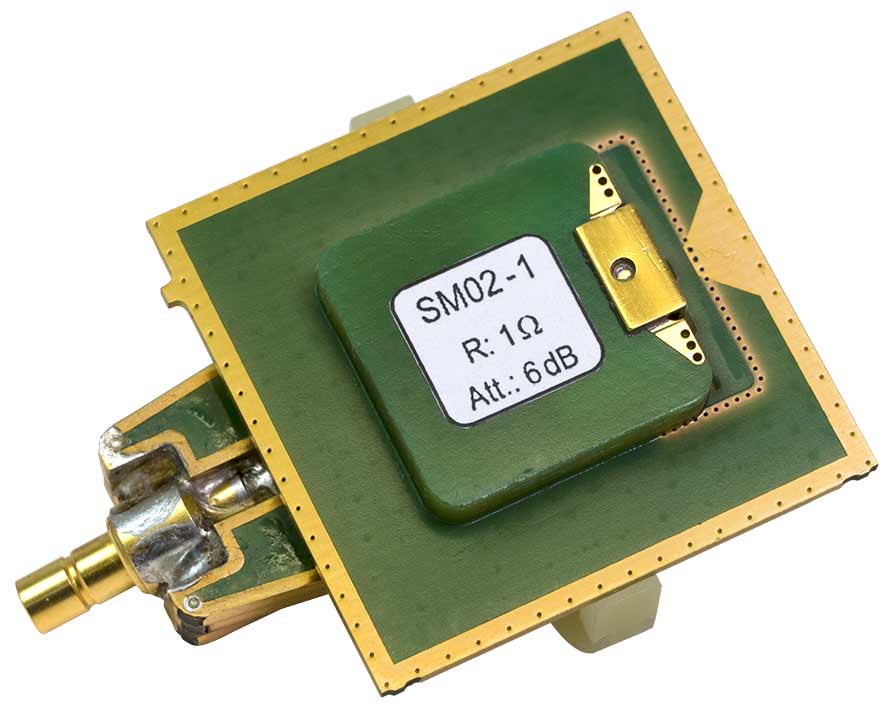

SM 02-1
Shunt 1 Ohm
Short description
The SM 02-1 shunt is designed to measure faster transient current pulses up to 4 GHz. With the SM 02-1, the disturbing pulse of a disturbance generator can be measured, e.g. Burst/EFT generators or ESD generators.
The shunt is a passive measurement device. It transforms RF current into the measuring voltage UAV. The shunt is designed for connection with spectrum analyzers, oscilloscopes or comparable measurement devices.
Technical parameters
| Frequency range | DC ... 4 GHz |
| Input resistance | 1 Ω |
| Output resistance | 50 Ω |
| Continuous power rating | |
| Burst sequences IEC 61000-4-4 | 5 / 50 ns |
| Burst repetition | 300 ms |
| Impulses per burst | 100 |
| Pulse frequency | 500 kHz |
| Current | 150 A |
| Measuring output | 50 Ω, SMB |
| RMS Power | 3 W |
| Correction factor | 6 dB |
| Single pulse capacity 5/50 ns, 1/60 ns | 150 A |
