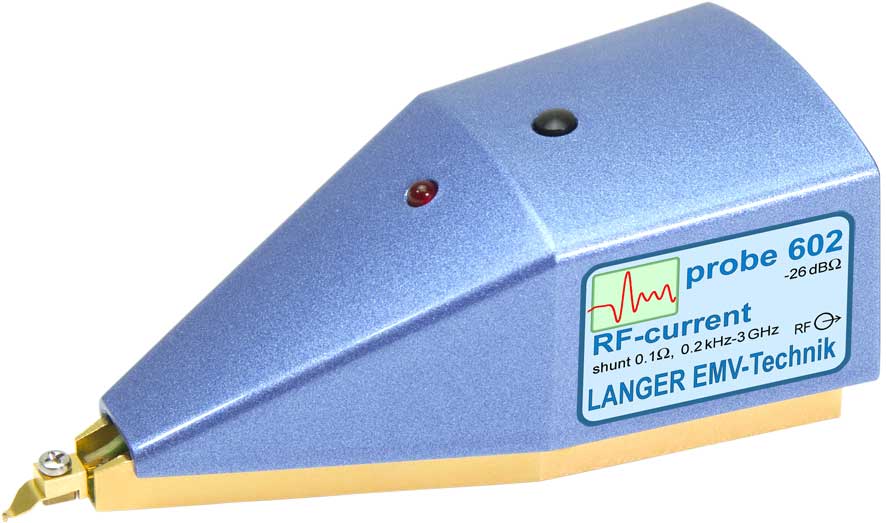

  • P602, RF Current Probe 0.1 Ohm

P602

RF Current Probe 0.1 Ohm

  • Short description
  • Technical parameters
Send enquiry Datasheet
  • P602, RF Current Probe 0.1 Ohm

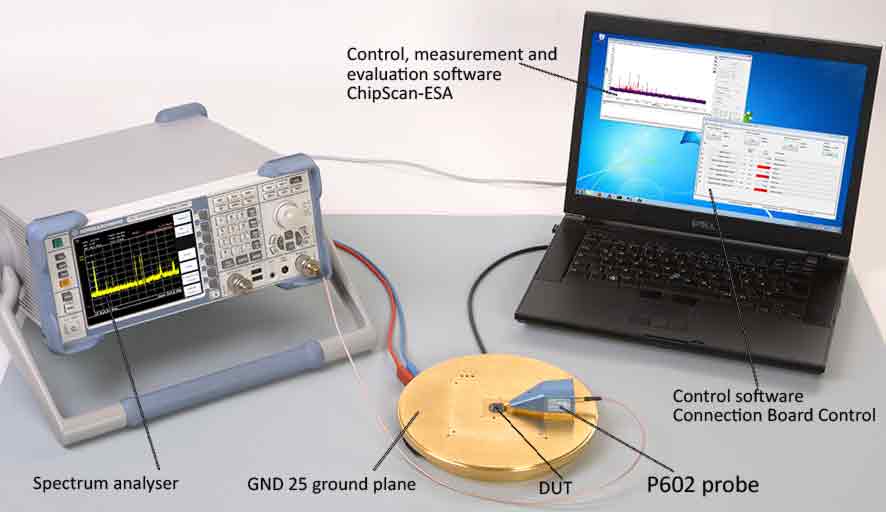

  • Application with P602
    Application with P602
P602, RF Current Probe 0.1 Ohm Application with P602
  • P602, RF Current Probe 0.1 Ohm
  • Application with P602
Short description

The P602 is a 0.1 ohm probe for direct measurement of high frequency (RF) current at IC pins. The measurement error, which is due to the very small resistance, is lower in comparison to P603. It is used to measure supply pins (Vdd / Vss) and signal pins.

The 0.1 ohm RF current probe has a pin contact with which IC pins can be separately contacted and measured.

Technical parameters
Frequency range 9 kHz ... 3 GHz
Coupling capacity 8 µF
Measuring output 50 Ω, SMB
Transfer factor voltage -6 dB
Ammeter /current probe
Shunt 0.1 Ω
Current correction factor R -26 dBΩ
Inductance 1 nH
Max. power dissipation 2.5 W
Frequency response Frequency response Frequency response
Equivalent circuit Equivalent circuit Equivalent circuit
Design, view 1 Design, view 1 Design, view 1
