SX-R 20-1

H-Field Probe 1 GHz up to 20 GHz

Send enquiry Datasheet
  • SX-R 20-1, H-Field Probe 1 GHz up to 20 GHz

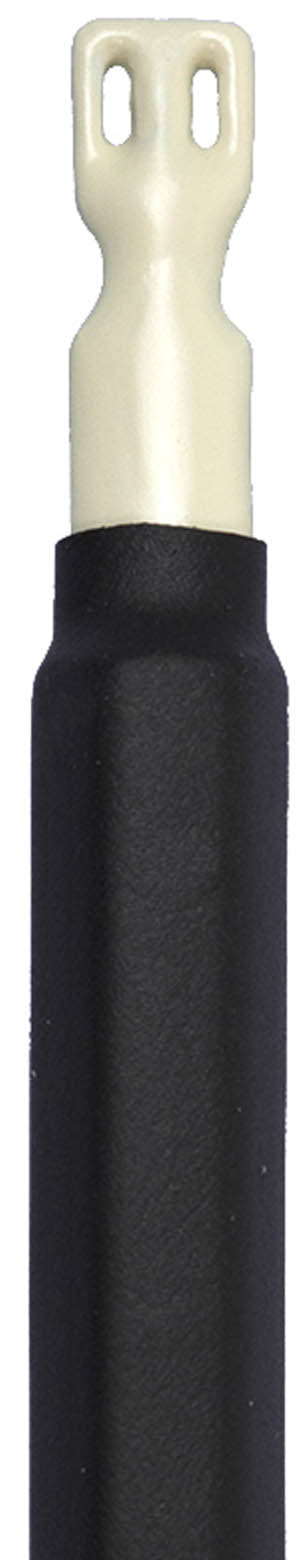

  • SX-R 20-1 probe head
    SX-R 20-1 probe head
SX-R 20-1, H-Field Probe 1 GHz up to 20 GHz SX-R 20-1 probe head
  • SX-R 20-1, H-Field Probe 1 GHz up to 20 GHz
  • SX-R 20-1 probe head
Short description

The SX-R 20-1 is a passive H-field probe covering a frequency range up to 20 GHz. The probe head of the SX-R 20-1 is very compact. This allows the location of very small H-field sources, e.g. on traces, individual components or above an IC. It has a current attenuating sheath and is electrically shielded. The near-field probe can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input.

Technical parameters
Frequency range 1 GHz ... 20 GHz
Probe head dimensions: ≈ 6x6 mm
Connector - output SMA, female, jack
Frequency response Frequency response Frequency response
Correction curve flux density [dBµT] / [dBµV] Correction curve flux density [dBµT] / [dBµV] Correction curve flux density [dBµT] / [dBµV]
Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV] Current correction curve [dBµA] / [dBµV]
Measuring principles Measuring principles Measuring principles
