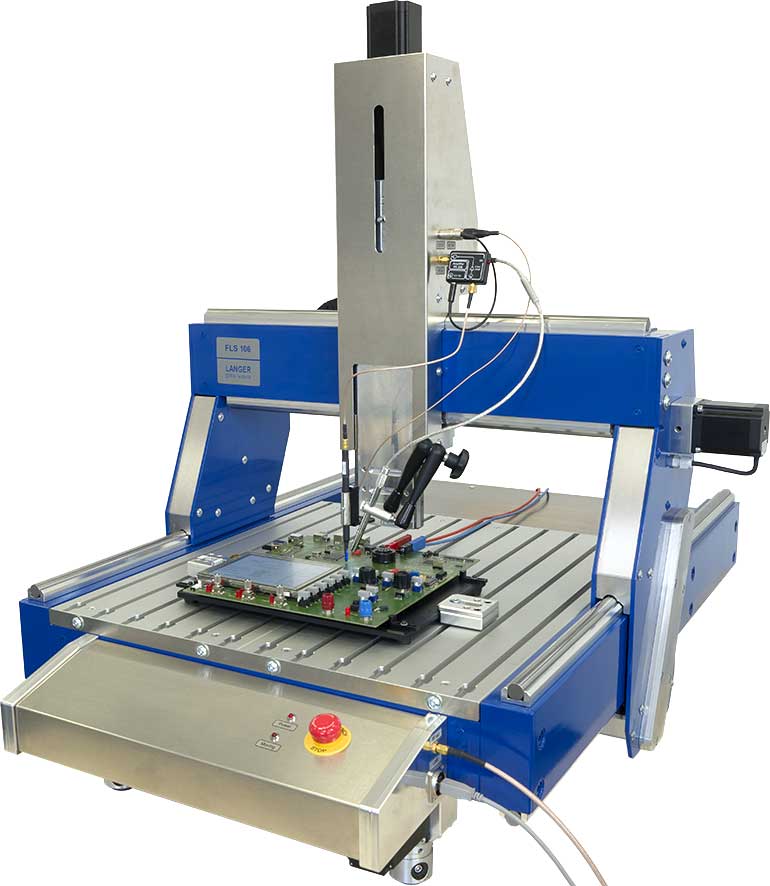

The FLS 106 PCB Langer scanner is a 3-axes positioning system used in conjunction with near-field probes in order to measure magnetic or E-fields up to 20 GHz and to pulse the device under test via H-field sources with pulse fields up to 200 mT.

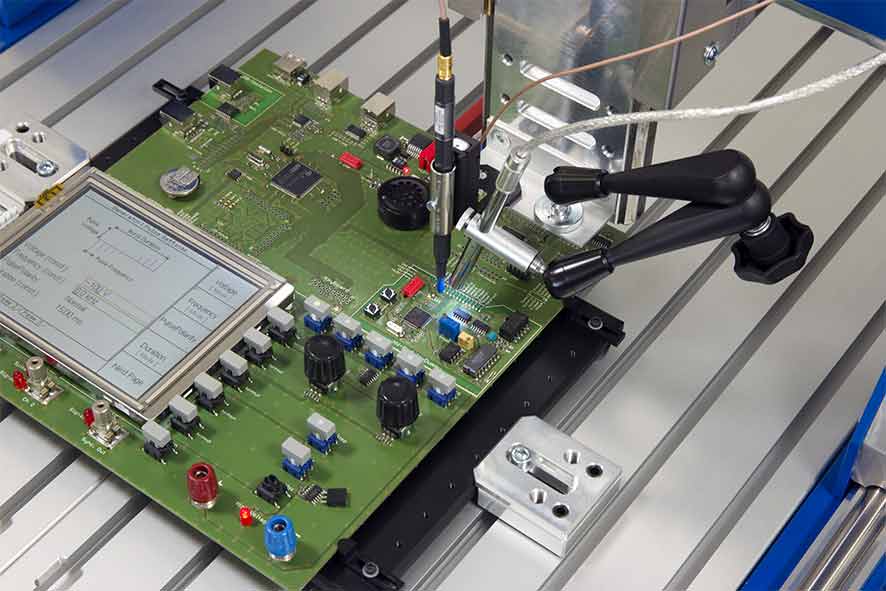

The near-field probes or field sources can be moved along all three axes above the assembly.
A digital microscope camera allows for optical positioning control above the object being measured.
The included collision protection system stops the vertical movement of the probe if it touches the device under test.
The use of the scanner with near-field probes from the SX, RF, XF or LF family allows measurements in the frequency range from 100 kHz up to 20 GHz.
The FLS 106 PCB scanner is controlled by the ChipScan-Scanner software via a PC. The software simultaneously allows measured values reading from the spectrum analyzer, graphic representation (2D or 3D), the storage and output of measured data (CSV data file). The FLS 106 PCB scanner can be upgraded to a 4-axes positioning system via a rotary unit.
Scope of delivery
- SX1 set, Near-Field Probes 1 GHz up to 10 GHz
- XF Product family, Near-Field Probes 30 MHz up to 6 GHz
- RF Product family, Near-Field Probes 30 MHz up to 3 GHz
- LF Product family, Near-Field Probes 100 kHz up to 50 MHz
- Rotary unit, Rotary Unit
- PA 203 SMA, Preamplifier 100 kHz to 3 GHz
- PA 303 SMA, Preamplifier 100 kHz up to 3 GHz
- PA 306 SMA, Preamplifier 100 kHz to 6 GHz
|Supply voltage||110 V / 230 V|
|x, y, z axes|
|Max. traverse distance||(400 x 600 x 120) mm|
|Min. positioning distance||(20 x 20 x 20) µm|
|Positioning speed||(20 x 25 x 10) mm/s|
|Sizes (L x W x H)||(1030 x 775 x 900) mm|
Scope of delivery details

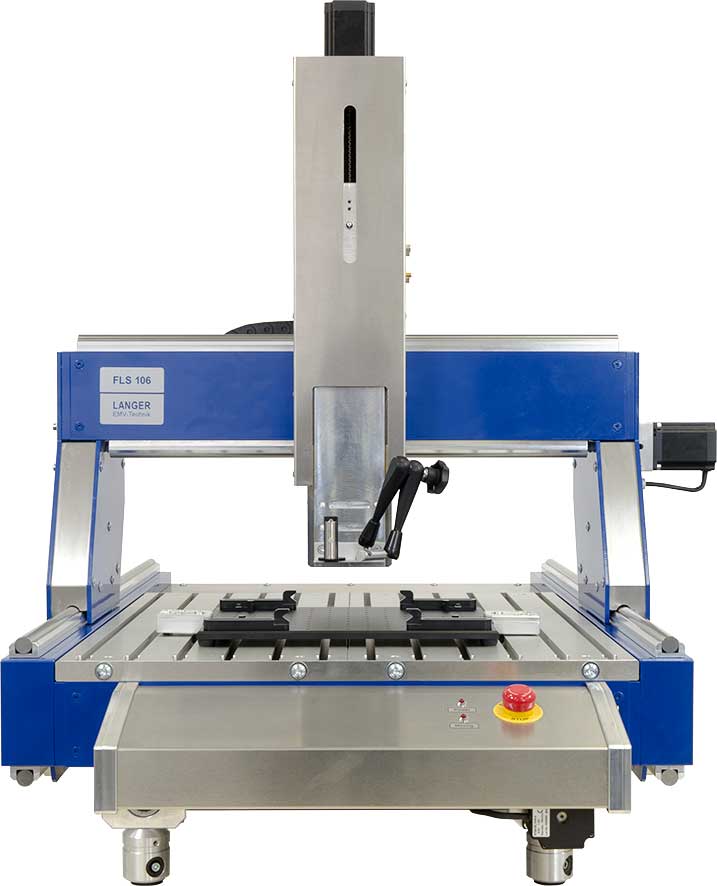

The FLS 106 3-axis positioning system is used to move near field probes in three axises and to rotate the near field probes above a DUT.

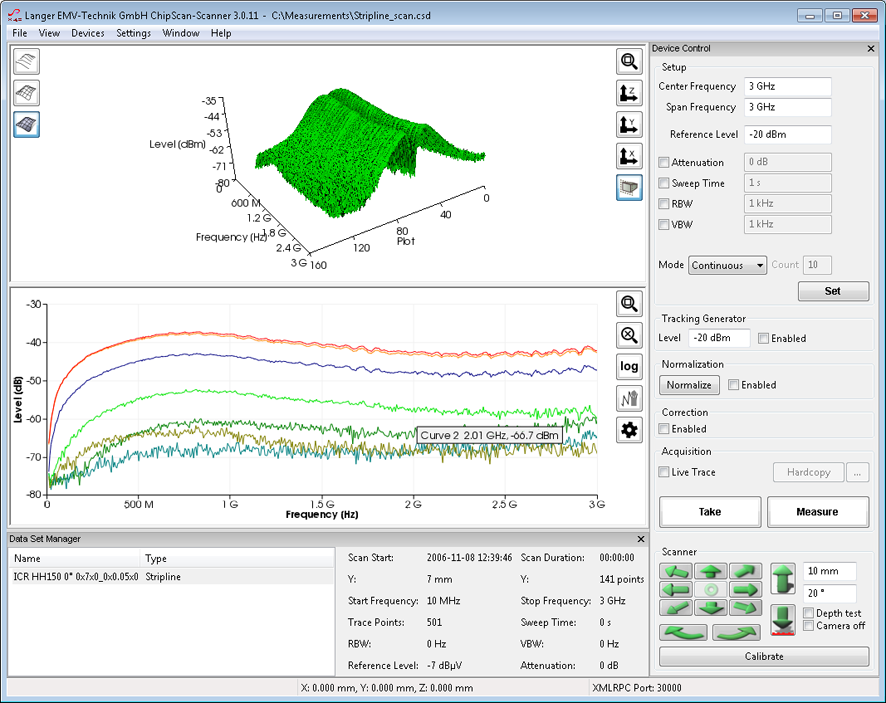

ChipScan-Scanner is an evaluation software designed for reliable acquisition, fast interactive visualization and sophisticated analysis of electromagnetic compatibility (EMC) measurements of components. In combination with a Langer IC-Scanner and one of Langer's ICR microprobes, ChipScan-Scanner is …

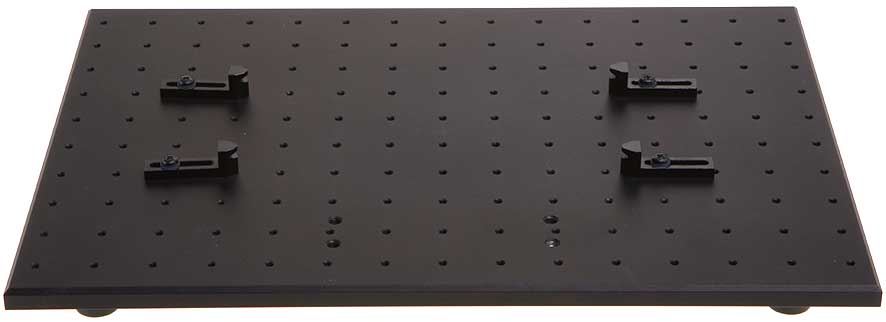

The universal holder is designed for the fixation of electronic assemblies on the scanner. Continuously adjustable claws, which are fixed with M3 screws into the holes of UH DUT, allow the flexible positioning of the device being tested on the universal holder.

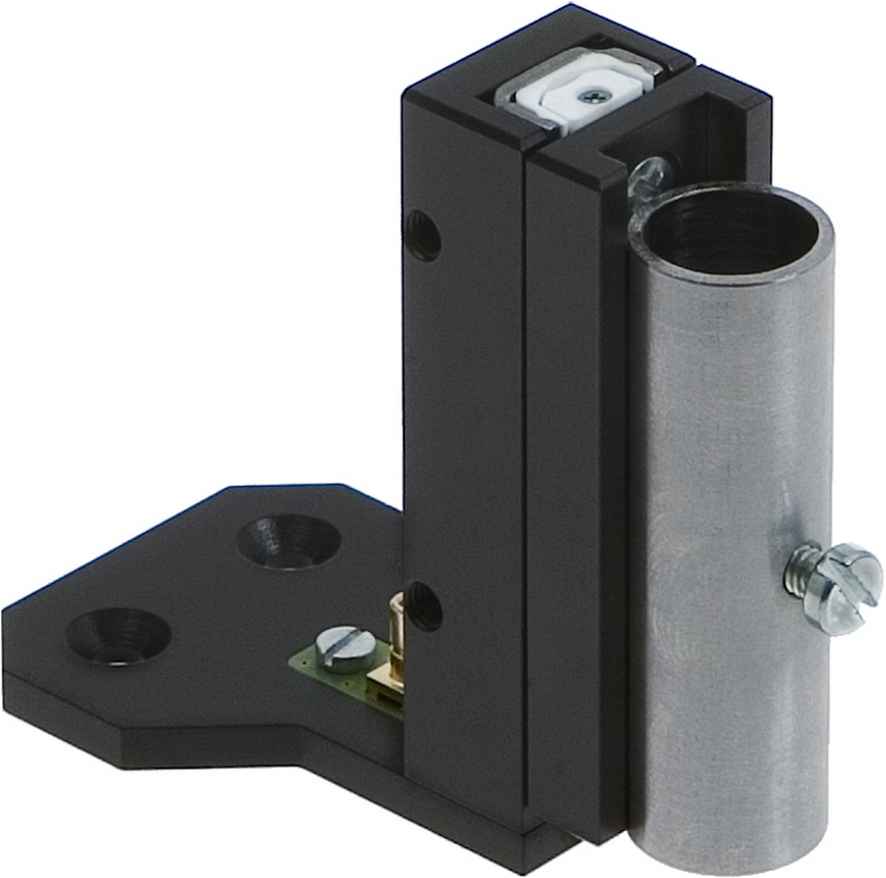

The probe holder is used to hold near field probes of Langer EMV-Technik GmbH. The probe holder supports the function collision protection system of the Langer-Scanner. The probe holder is attached to the rotating unit of Langer-Scanner.

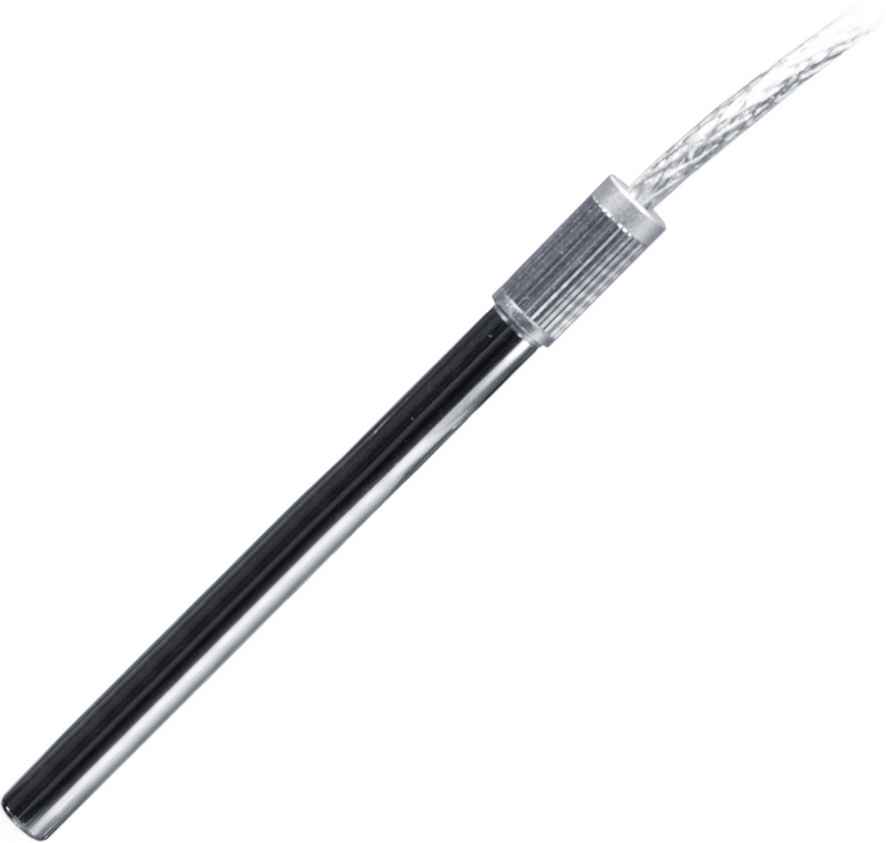

The digital microscope camera is an essential part of a Langer-Scanner and makes it easier to position the near-field probes above the DUT.
