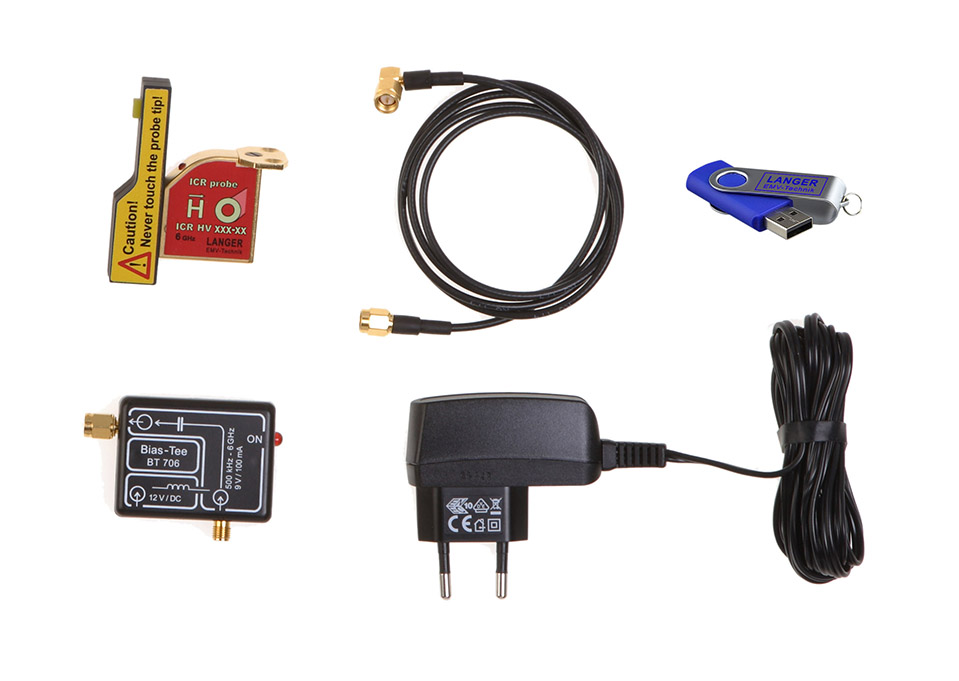

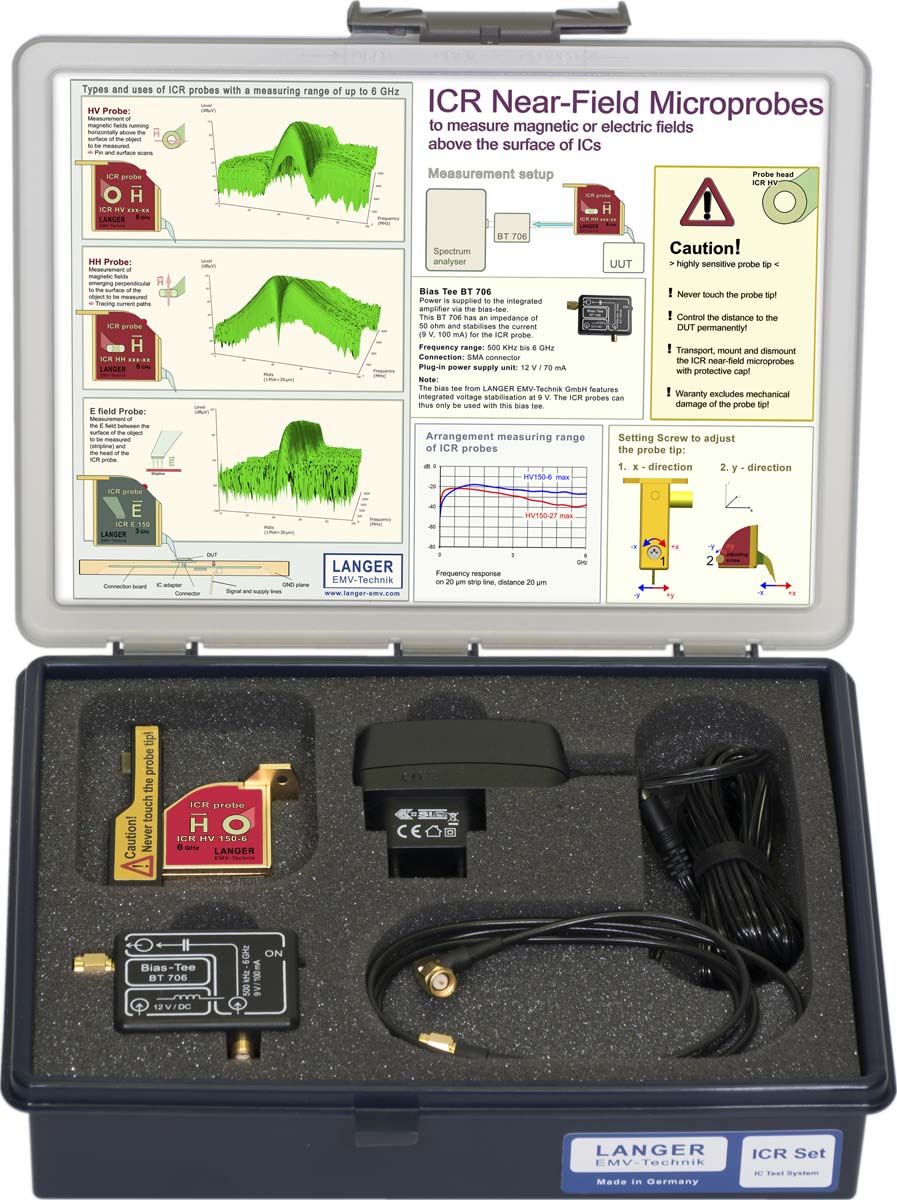

Scope of delivery details
Measurement via reference object

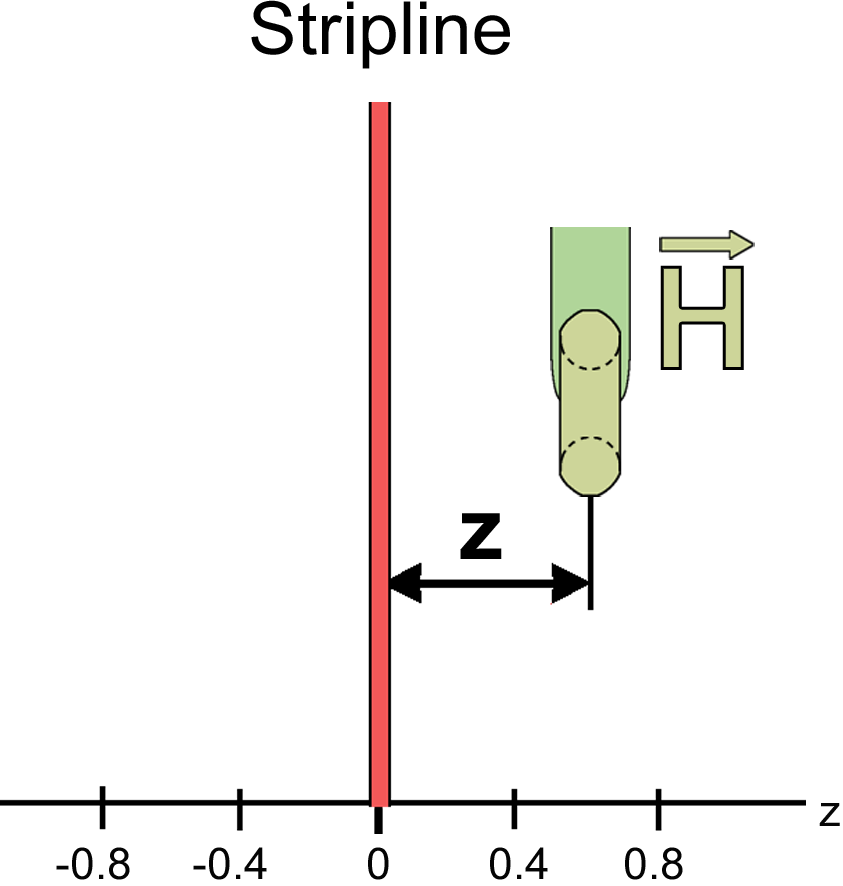

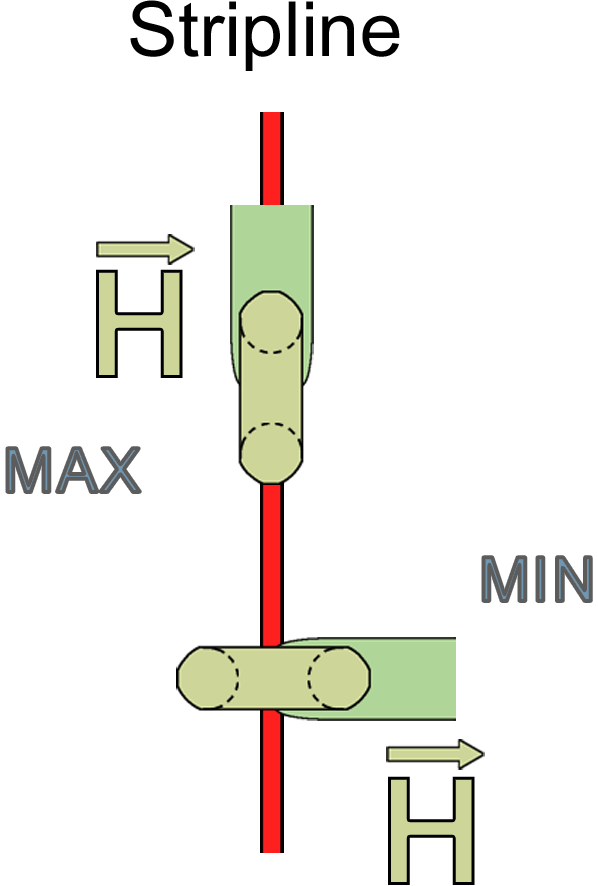

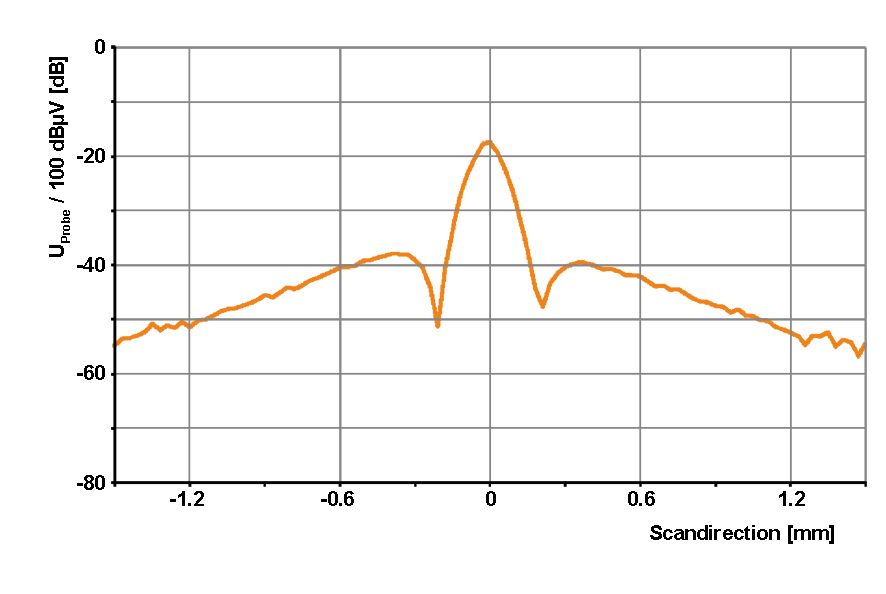

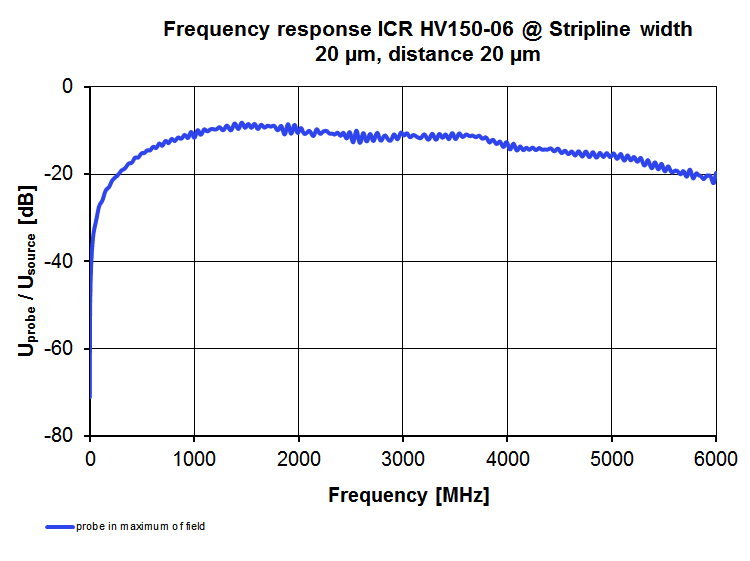

As the near-field microprobe, due to its design and its high degree of miniaturization, shows differences within a type series in its transmission behavior, a measurement over a reference object is necessary. For this purpose, the microprobes are measured over a stripline. In this way, the transmission behavior can be determined at previously defined values. The customer receives a certificate for each microprobe ordered and the specific characteristics of the corresponding near-field microprobes.

Download
Overview Description Dimensions of ICR probes (PDF, 1.11 MB)
