SX-E 03

E-Field Probe 1 GHz up to 10 GHz

  • Short description
  • Technical parameters
Send enquiry Datasheet
  • SX-E 03, E-Field Probe 1 GHz up to 10 GHz

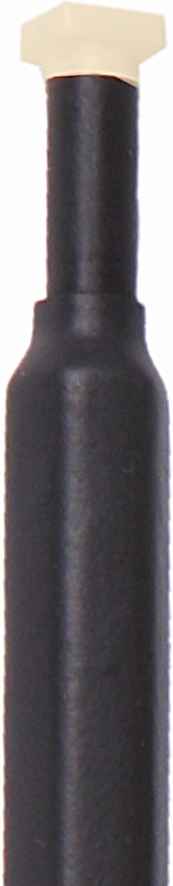

  • Probe head
    Probe head
SX-E 03, E-Field Probe 1 GHz up to 10 GHz Probe head
  • SX-E 03, E-Field Probe 1 GHz up to 10 GHz
  • Probe head
Short description

With 4x4 mm dimensions, the electrode on the underside of the probe head of the SX-E 03 is very compact. This allows for the localization of very small E-field sources, e.g. at conducting paths, single components, or on printed circuit boards.

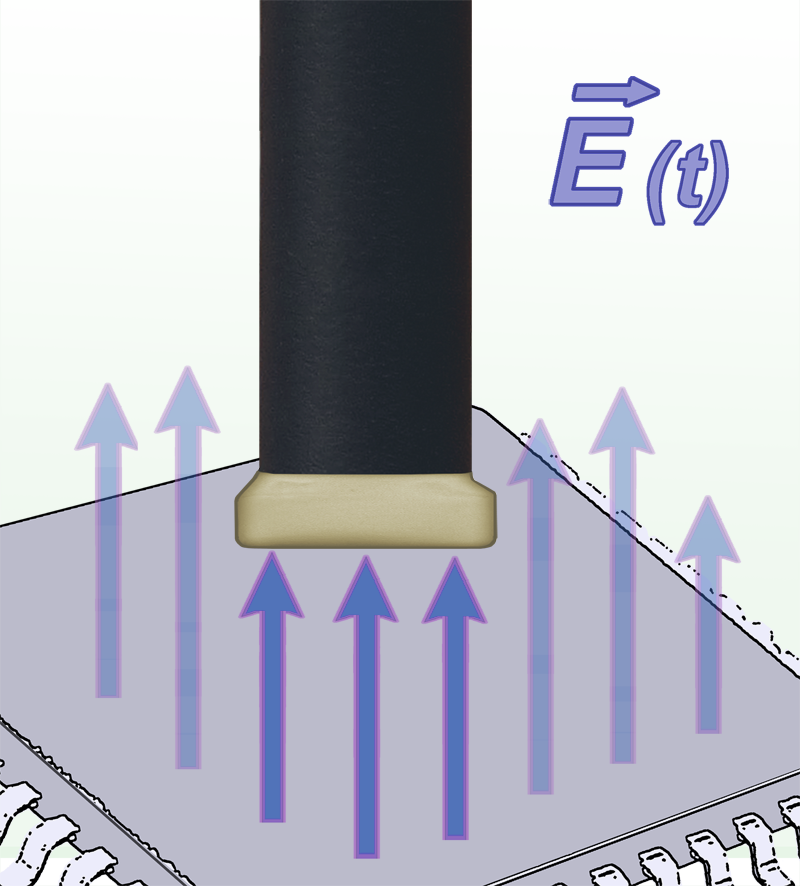

The SX-E 03 is a passive near-field probe. To measure, the probe head is positioned directly onto the measured object, due to higher electrical field strength at the measured object. The near-field probe is small and handy. It has a current attenuating sheath and its upper side is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input.

Technical parameters
Frequency range 1 GHz ... 10 GHz
Probe head dimensions: ≈ (4 x 4) mm
Connector - output SMA, female, jack
Frequency response [dBµV] / [dBµV/mm] Frequency response [dBµV] / [dBµV/mm] Frequency response [dBµV] / [dBµV/mm]
E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV] E- field correction curve [dBµV/mm] / [dBµV]
Measuring principles Measuring principles Measuring principles
