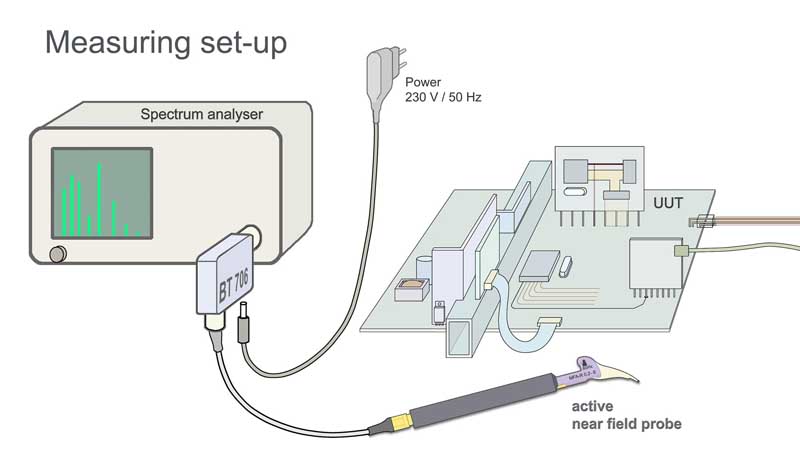

The MFA 01 set includes high-resolution near-field micro probes used to measure magnetic fields up to 6 GHz, e.g. at signal conductors (150µm), SMD components (0603-0201), or IC pins. Each hand-guided MFA near-field micro probe has an integrated preamplifier. The amplifier stage (9V, 100mA) is powered via the bias tee BT 706, which has an impedance of 50 Ohm. The near-field micro probes are connected via the BT 706 to a spectrum analyzer or an oscilloscope. Langer EMV-Technik GmbH includes correction lines in the delivery. With the help of the correction lines the probe's output voltage is converted into either the respective magnetic field or the current running through the conductor.

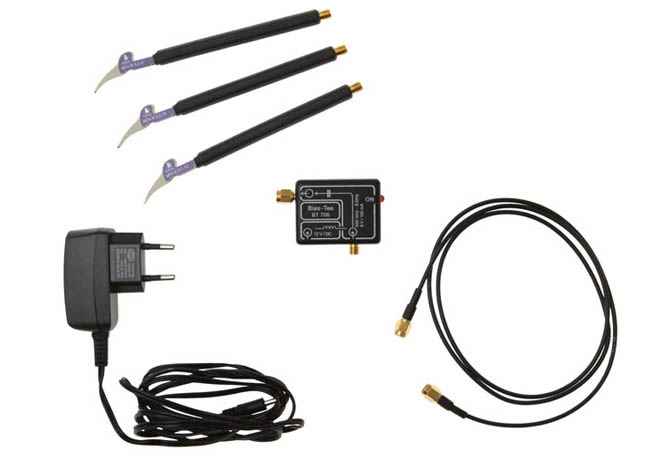

Scope of delivery
- 1x MFA-R 0.2-6, Near-Field Micro Probe 100 MHz up to 6 GHz
- 1x MFA-K 0.1-12, Near-Field Micro Probe 100 MHz up to 6 GHz
- 1x MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz
- 1x BT 706, Bias Tee for Langer probes
- 1x SMA-SMA 1 m, SMA-SMA Measuring Cable
- 1x NT FRI EU, Power Supply Unit

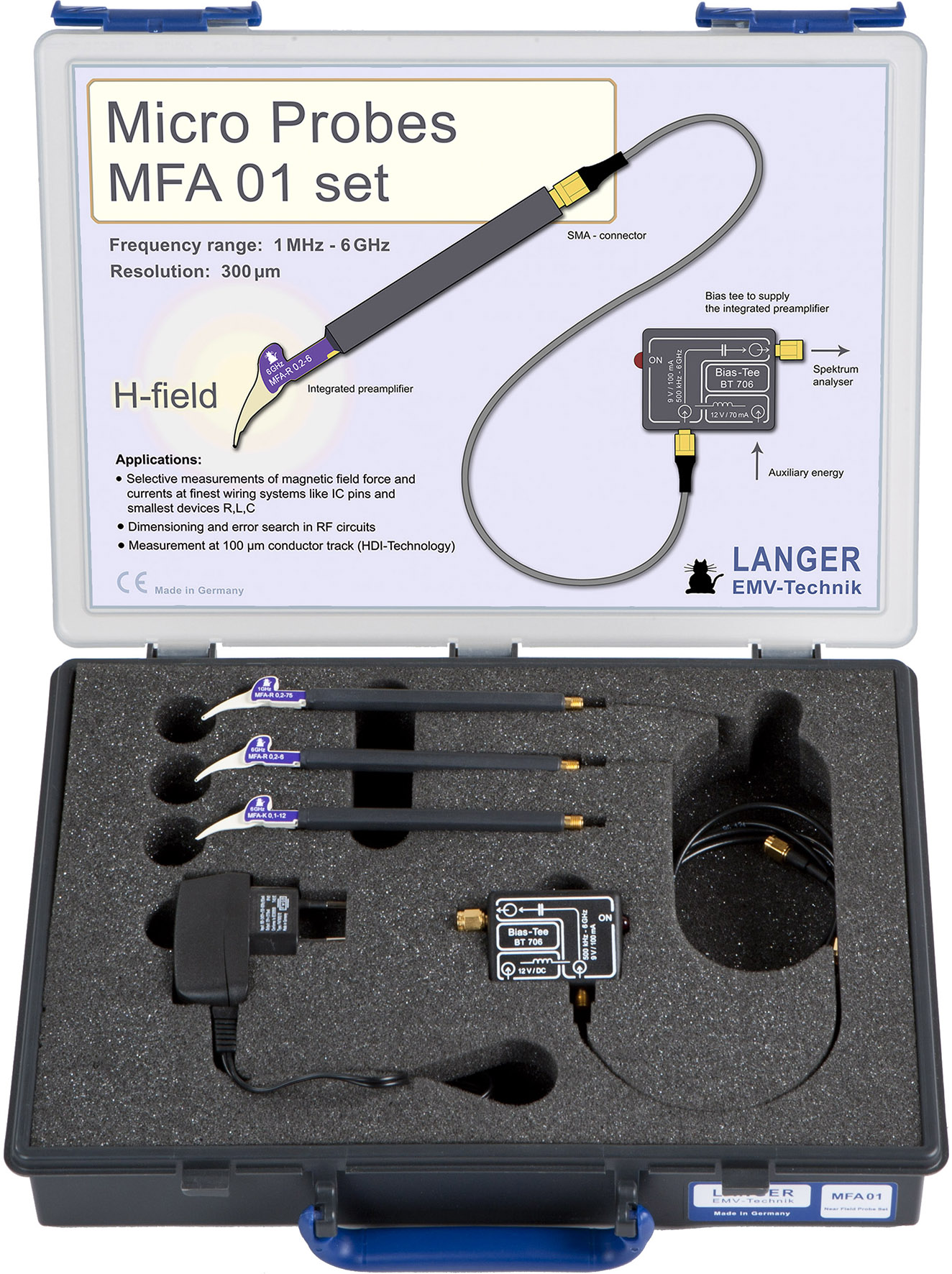

- 1x MFA case, System Case Near-Field Probes
- 1x MFA acc, Accessories
|Frequency range||1 MHz ... 6 GHz|
Scope of delivery details

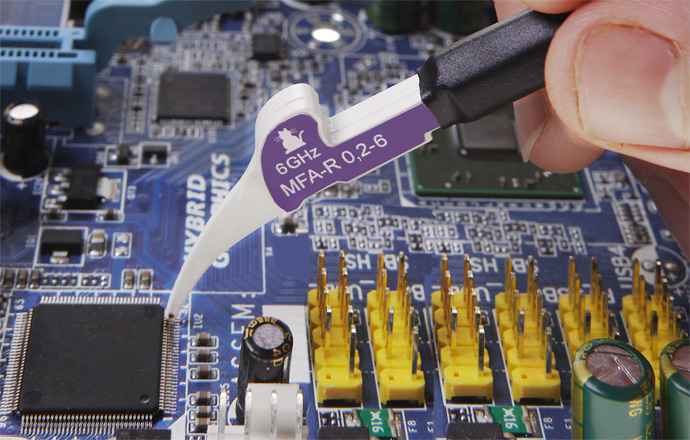

The MFA-R 0.2-6 near-field micro probe has an extremely small and high resolution probe head. It is suitable for measuring RF magnetic fields up to 6 GHz on components, e.g. close to IC pins, finest conducting paths or smallest SMD components (0603-0201).
The MFA-K 0.1-12 near-field micro probe has an extremely small probe head which functions like a coupling clamp. It allows for current measurements at IC pins and the finest conducting paths. The near-field micro probe is shielded from field lines entering the probe head laterally.
The MFA-R 0.2-75 near-field micro probe has an extremely small and high resolution probe head. It is suitable for measuring RF magnetic fields up to 1 GHz on components, e.g. close to IC pins, finest conducting paths or smallest SMD components (0603-0201).

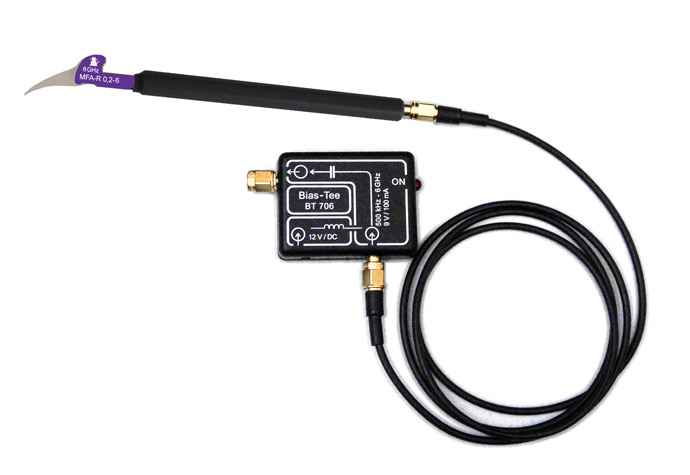

The Bias Tee is designed for powering the preamplifier. The preamplifier is powered via its amplifier output. The transmitted measuring signal from the amlifier output is not affected. The Bias Tee is inserted into the HR measuring cable of the preamplifier to the input of a spectrum analyzer or os…
