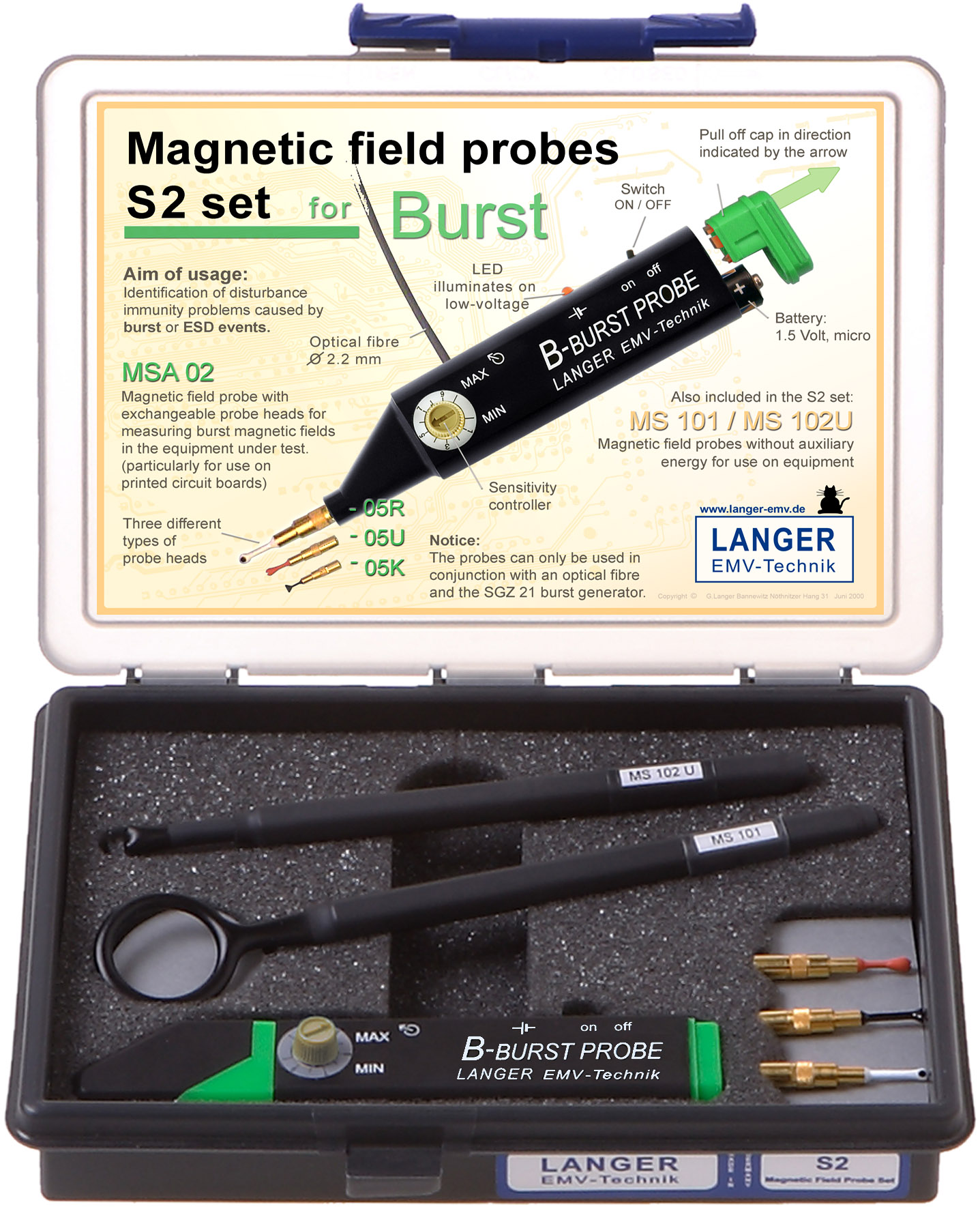

The S2 set contains active and passive magnetic field probes. They measure the nonreactive fast transient pulse magnetic fields in electonic devices and assemblies under interference. Burst and ESD processes, which cause problems in the device under test, can be analyzed. The magnetic field probes transmit the measured signals via the LWL connection to the optical receiver of the SGZ 21. The S2 set can only be operated with the SGZ 21 burst generator included in the E1 set.
One AAA battery is required to operate the MSA 02 probe.

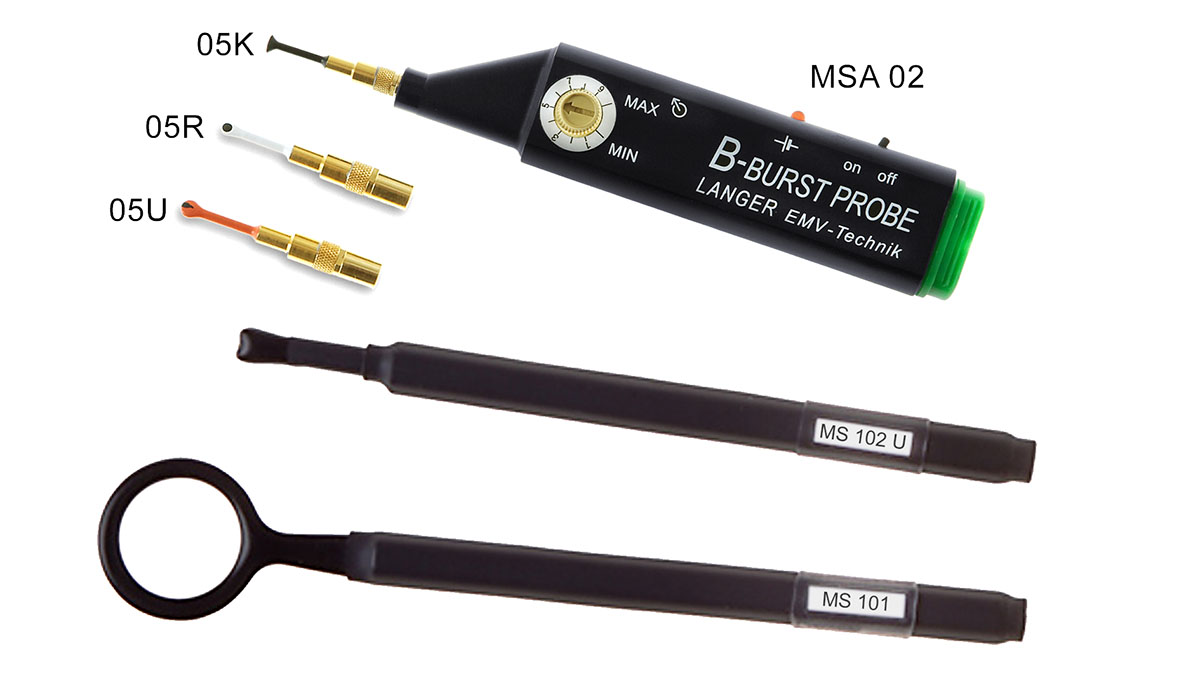

Scope of delivery
Scope of delivery details

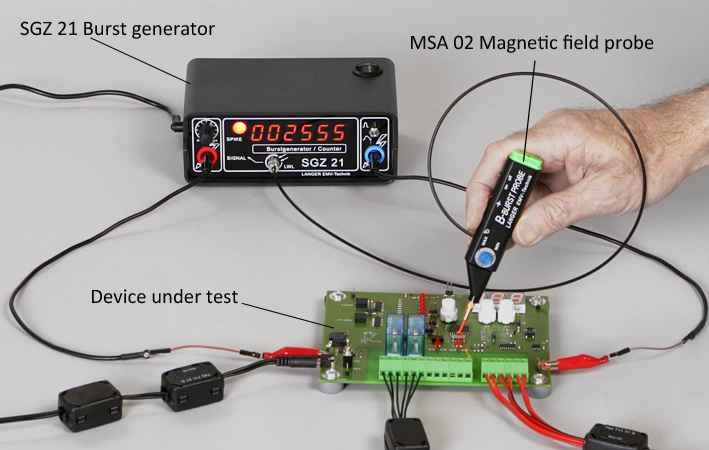

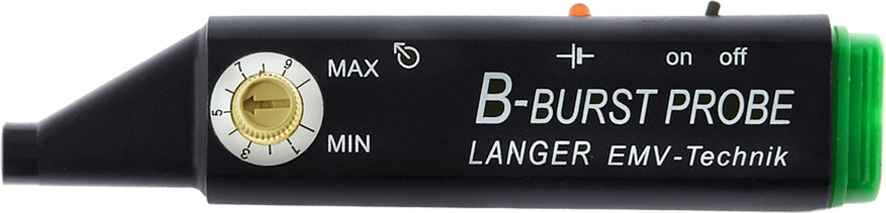

The MSA 02 magnetic field probe is designed for measuring burst magnetic fields with high resolution and sensitivity. It is operated with the 05R, 05U, and 05K changeable probe heads. The MSA 02 has a built-in preamplifier and is battery-powered. The MSA 02 is used in connection with the SGZ 21 burs…
The measurement coils of 05K probe head are positioned orthogonally to the probe shaft. They allow for the selective measurement of the rotating magnetic field around the conductor. Burst current conducting conductors can be detected. They are particulary suitable for measurements at broad conductin…
The 05R probe head is designed for measuring the burst magnetic field on an assembly`s surface. It is especially useful for the measurement of intensitiy and local orientation of burst magnetic fields near ICs. The probe head is white. Black dots mark the coil opening.
The 05U probe head functions like a coupling clamp. It is easily positioned onto conducting paths and components, e.g. SMD capacitors. The current flow, which runs through these components, can be estimated and the effectiveness of them like filter capacitors, for example, can be tested.
The MS 101 magnetic field probe detects the spartial distribution of magnetic fields. It is primarily used for cables, instrument housings or shielding shields. The magnetic field probe has an optical output and is operated in conjuction with SGZ 21. This is done by plugging in a fiber optic cable …

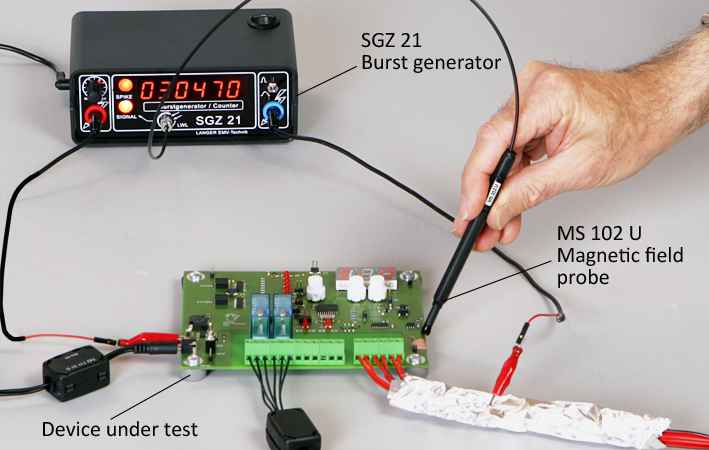

The MS 102U magnetic field probe detects currents in cables, lines and assemblies. The probe head is positioned directly on the line or on the surface of the device under test. The magnetic field probe has an optical output and is operated in conjunction with the SGZ 21. This is done by plugging in…
