OA 4005

Oscilloscope Adapter

Send enquiry Datasheet
  • OA 4005, Oscilloscope Adapter
  • Measurement set-up

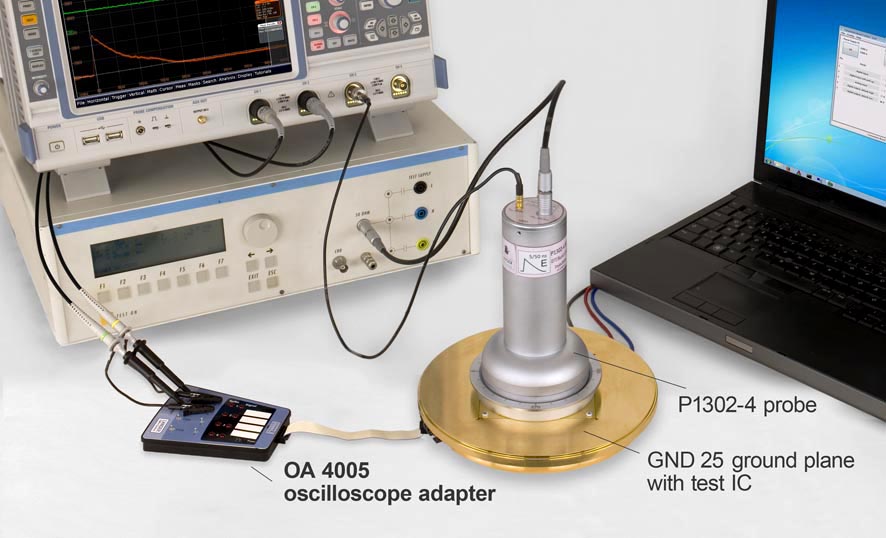

    Measurement set-up
OA 4005, Oscilloscope Adapter Measurement set-up
  • OA 4005, Oscilloscope Adapter
  • Measurement set-up
Short description

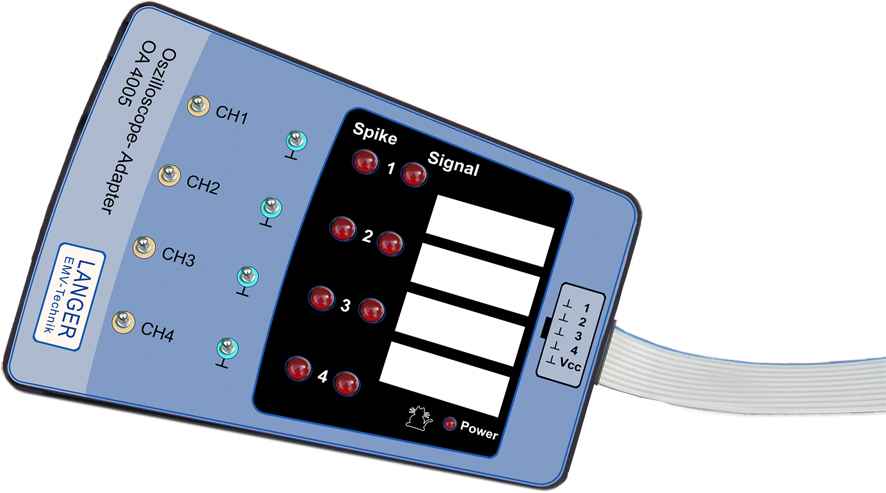

The OA 4005 is used to monitor the test IC and to visualize its signals. It is connected with the CB 0708 connection board via a flat ribbon cable. The LED signals 1-4 and spikes 1-4 show the signals of the test IC. Furthermore, there are four connections for oscilloscope probes (CH1-CH4).

The flat ribbon cable from the connection board ensures the power supply to the OA 4005.

Technical parameters
Cut-off frequency 45 MHz sine wave
Cut-off frequency 1 MHz rectangle wave
Max. input voltage RF 50 V
