ICI HH500-15 L-EFT
Pulse Magnetic Field Source
-
-
Application of ICI HH500-15 L-EFT pulse magnetic field source
Short description

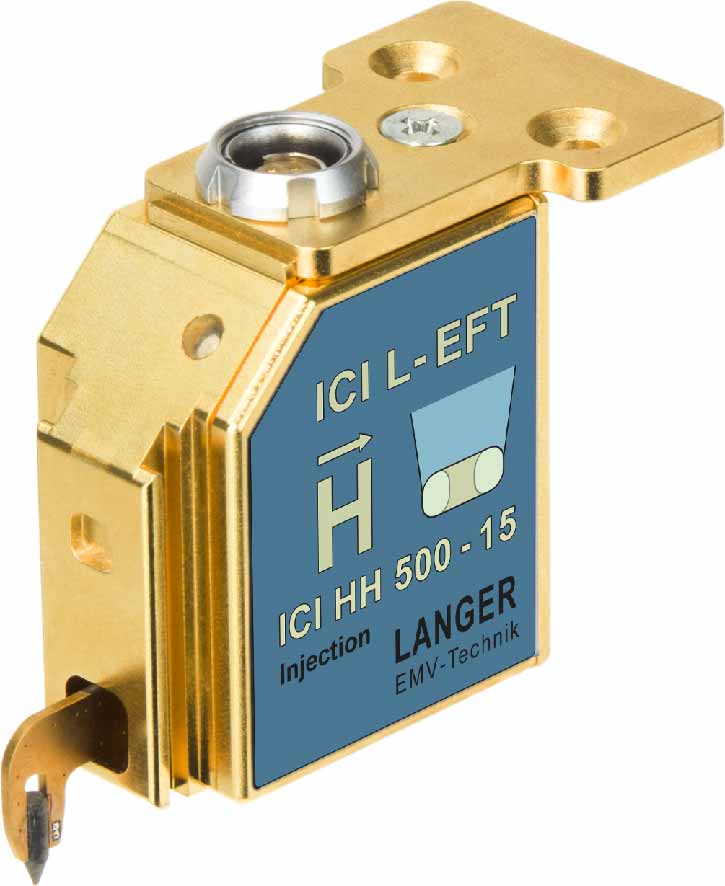

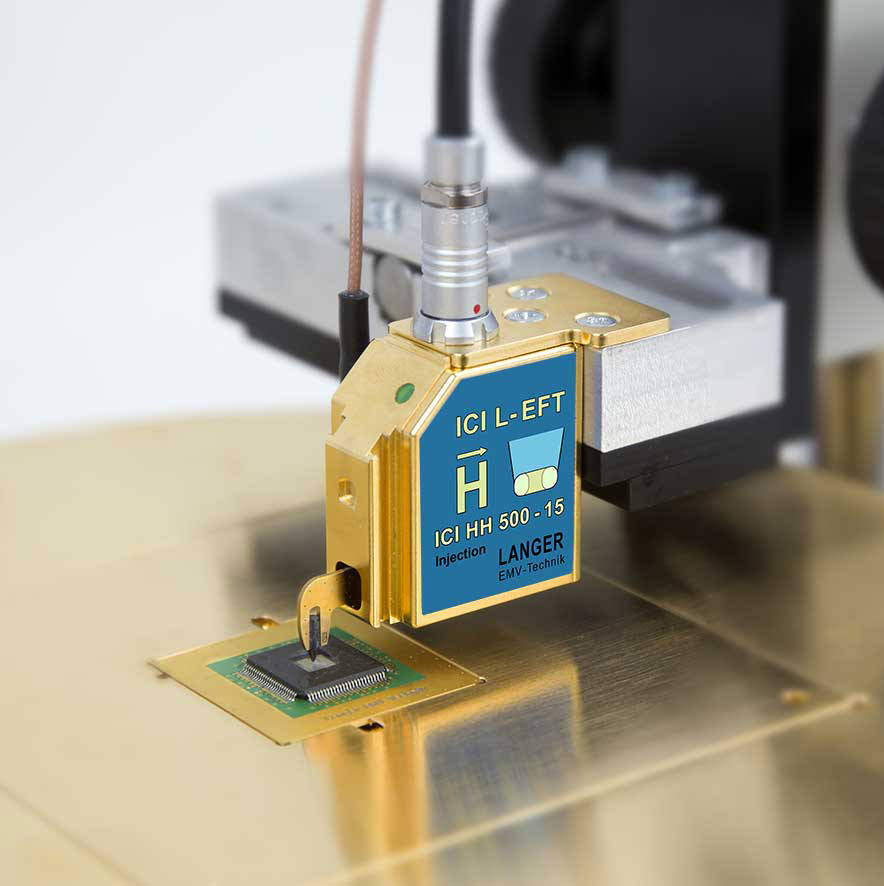

The ICI HH500-15 L-EFT pulse magnetic field source couples fast transient pulses into a test IC (open die). This allows for side channel analysis or testing the immunity of individual areas of the IC.
Technical parameters
| Probe head dimensions | Ø 500 µm |
| magnetic flux density (typ.) | 50 mT |
| Pulse parameter | |
| Rise time | < 2 ns |
| Repetition frequency | 0.1 Hz - 20 kHz |
| Polarity (set by software) | + / - / alternating |
| Measuring output | 50 Ω |
| Trigger-pulse delay (Bypass Mode - Delay Line) | |
| min. Trigger-pulse delay (typ.) | 70 ns |
| max. Trigger-pulse delay (typ.) | 420 ns |
| max. Jitter (typ.) | ± 1 ns |
| Supply voltage | BPS 202 |
| Weight | 70 g |
| Sizes (L x W x H) | (26 x 43 x 53) mm |

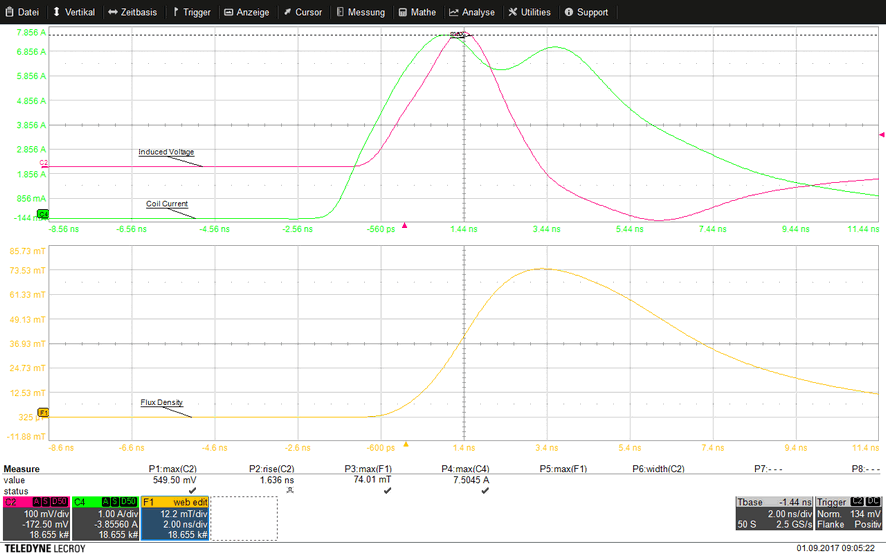

| Pulse shape |
|

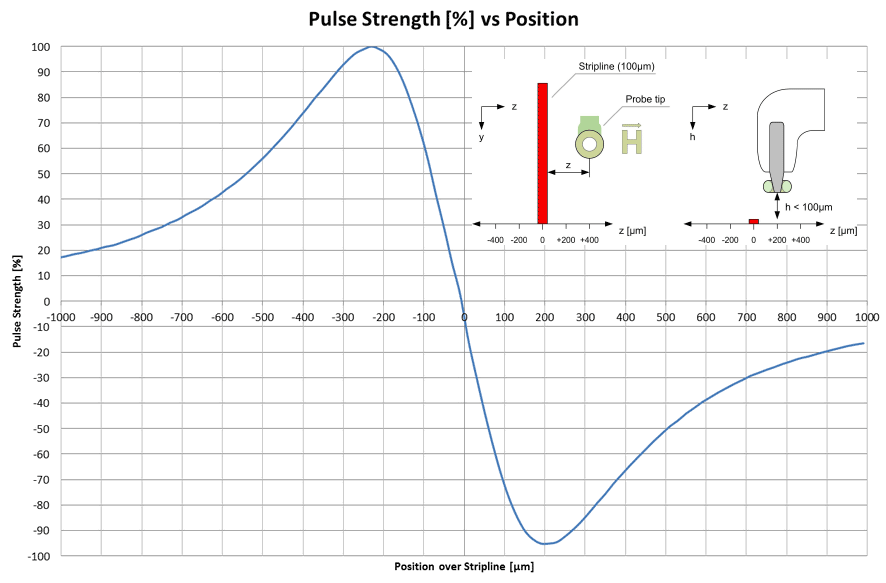

| Transverse scan |
|
