HR-R 8-1 set
Near-Field Probe Set up to 40 GHz B-field
-
-

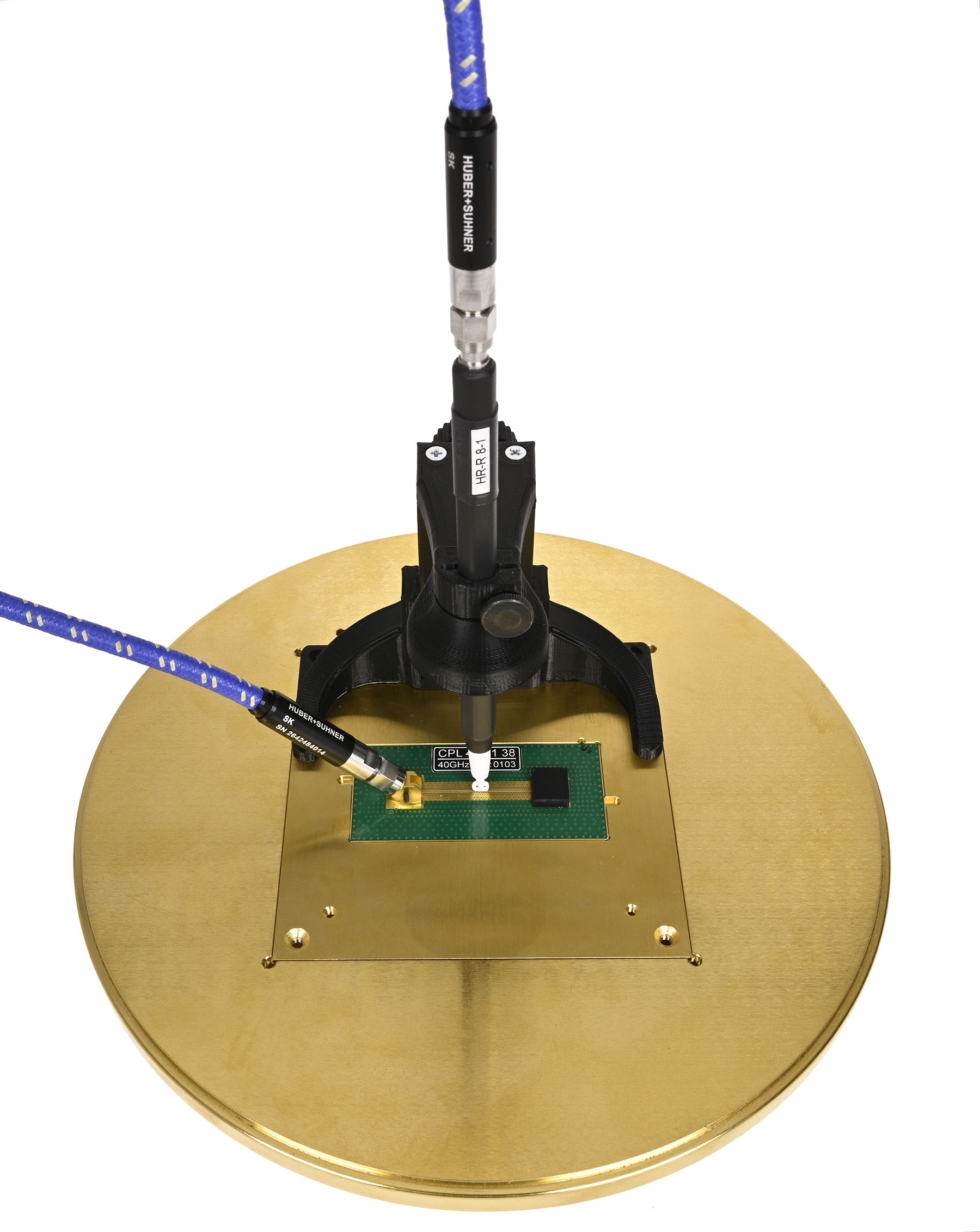

Measurement setup B-field probe HR-R 8-1 over 40 GHz coplanar line
Short description
The HR-R 8-1 set contains the HR-R 8-1 B-field probe. With this, magnetic field measurements up to 40 GHz are feasible.
The special probe head of the HR near-field probe enables measurements to be taken directly on IC pins or individual conductor tracks to localize B-field sources.
Scope of delivery

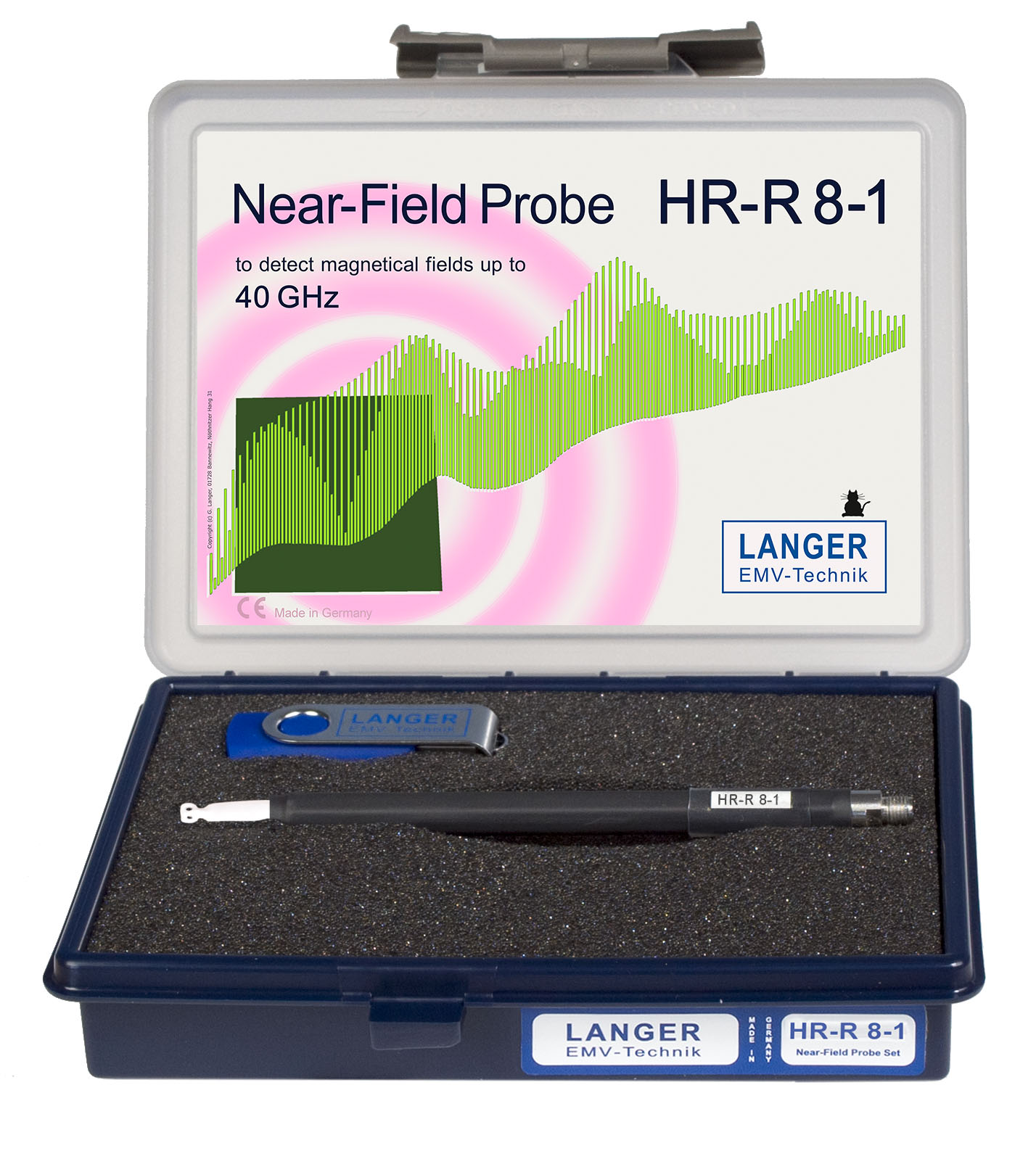

- 1x HR-R 8-1, B-Field probe up to 40 GHz
- 1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB
- 1x HR B char, HR-B 8-1 Characteristic / USB
- 1x HR-R 8-1 qg, Quick Guide
- 1x HR-R 8-1 m, User manual
- 1x Case 4, System Case Near-Field Probes
Recommended products
Technical parameters
| upper cut-off frequency | 40 GHz |
| Connector - output | 2.92 mm (K), female, jack |
