SX-R 20-1 set
Near-Field Probe 1 GHz up to 20 GHz

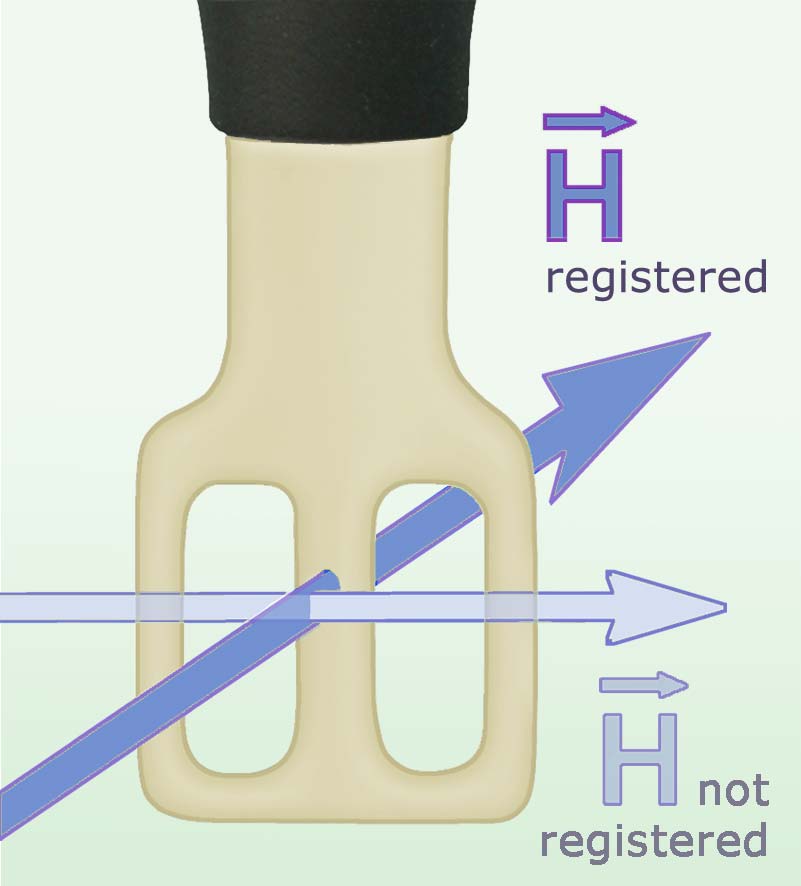

The SX-R 20-1 set consists of a passive near-field probe for the measurement of high-frequency magnetic fields up to 20 GHz during development. The probe head of the SX-R 20-1 allows measurements close to the electronic assembly, e.g. on individual IC pins, conductors, components and their connections to locate sources of interference. The field orientation and field distribution on the electronic assembly can be determined by guiding the near-field probe accordingly. The near-field probe is small and handy. It has a sheath current attenuation and is electrically shielded.
The near-field probe is connected to a spectrum analyzer or an oscilloscope with 50 Ω input.

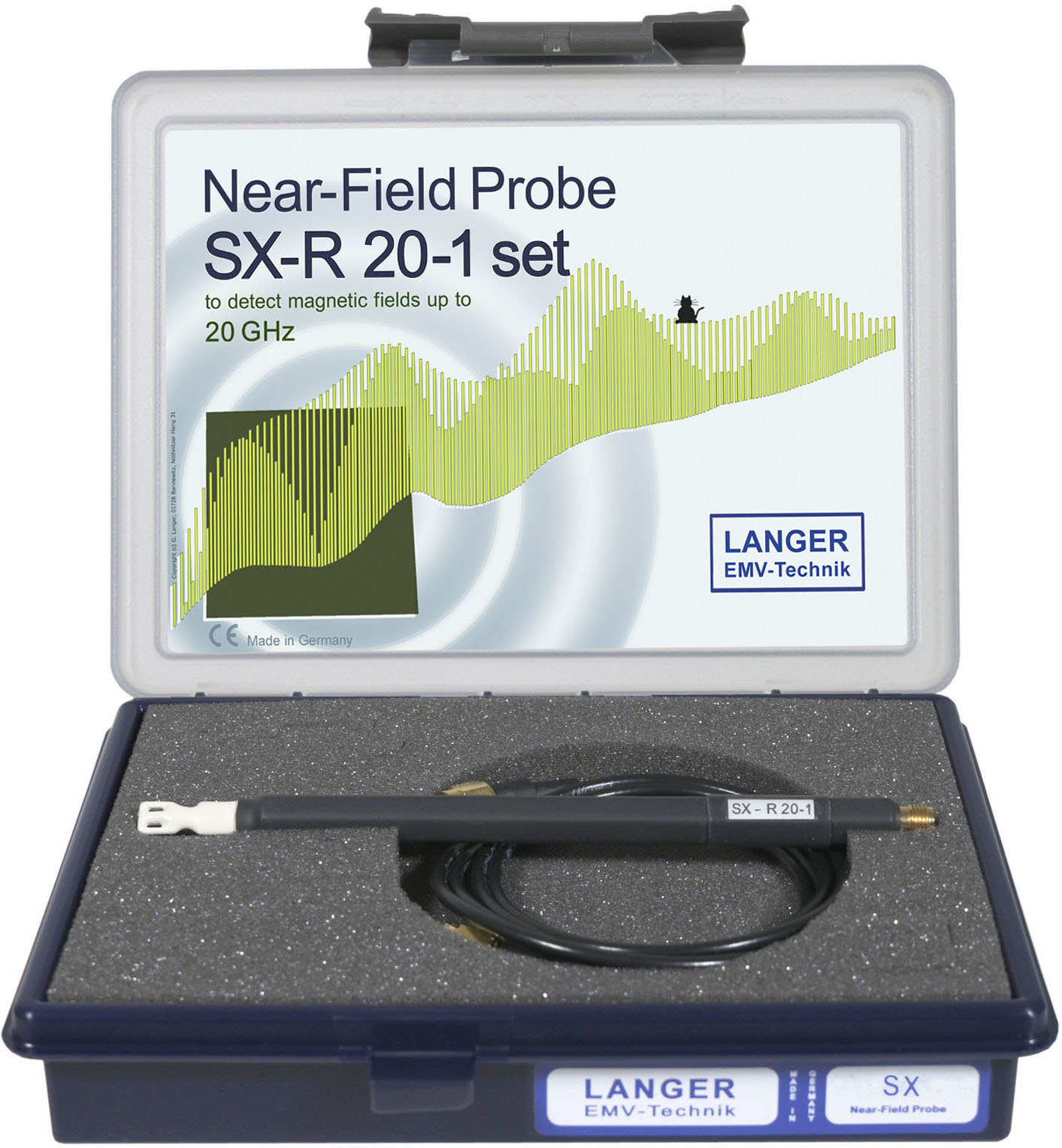

Scope of delivery
- 1x SX-R 20-1, H-Field Probe 1 GHz up to 20 GHz
- 1x SMA-SMA 1 m es, SMA-SMA Shielded Measurement Cable
- 1x Case 4, System Case Near-Field Probes
|Frequency range||1 GHz ... 20 GHz|
|Probe head dimensions||≈ 6x6 mm|
|Connector - output||SMA, female, jack|
Scope of delivery details
H-Field Probe 1 GHz up to 20 GHz

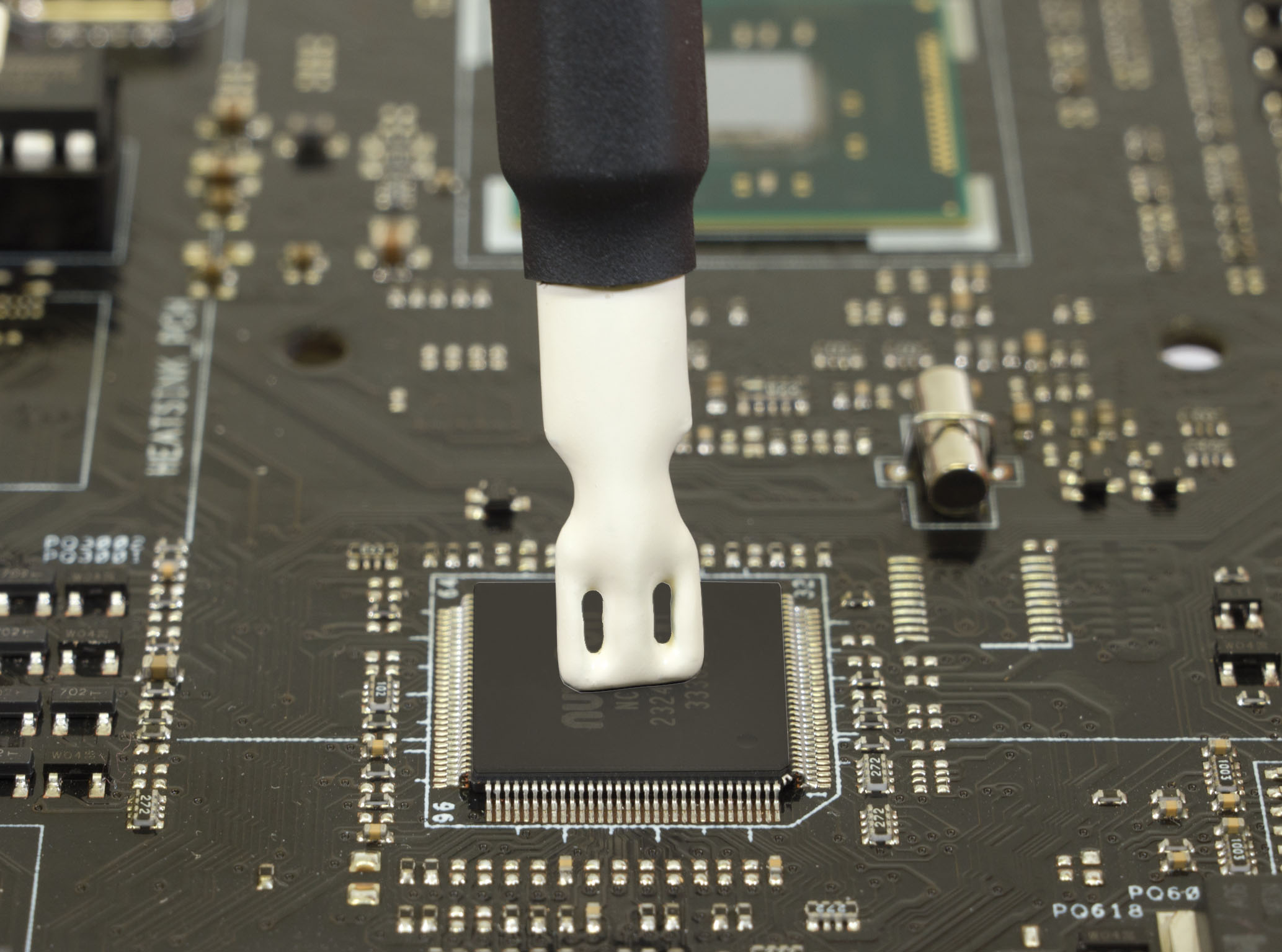

The SX-R 20-1 is a passive H-field probe covering a frequency range up to 20 GHz. The probe head of the SX-R 20-1 is very compact. This allows the location of very small H-field sources, e.g. on traces, individual components or above an IC. It has a current attenuating sheath and is electrically shi…
