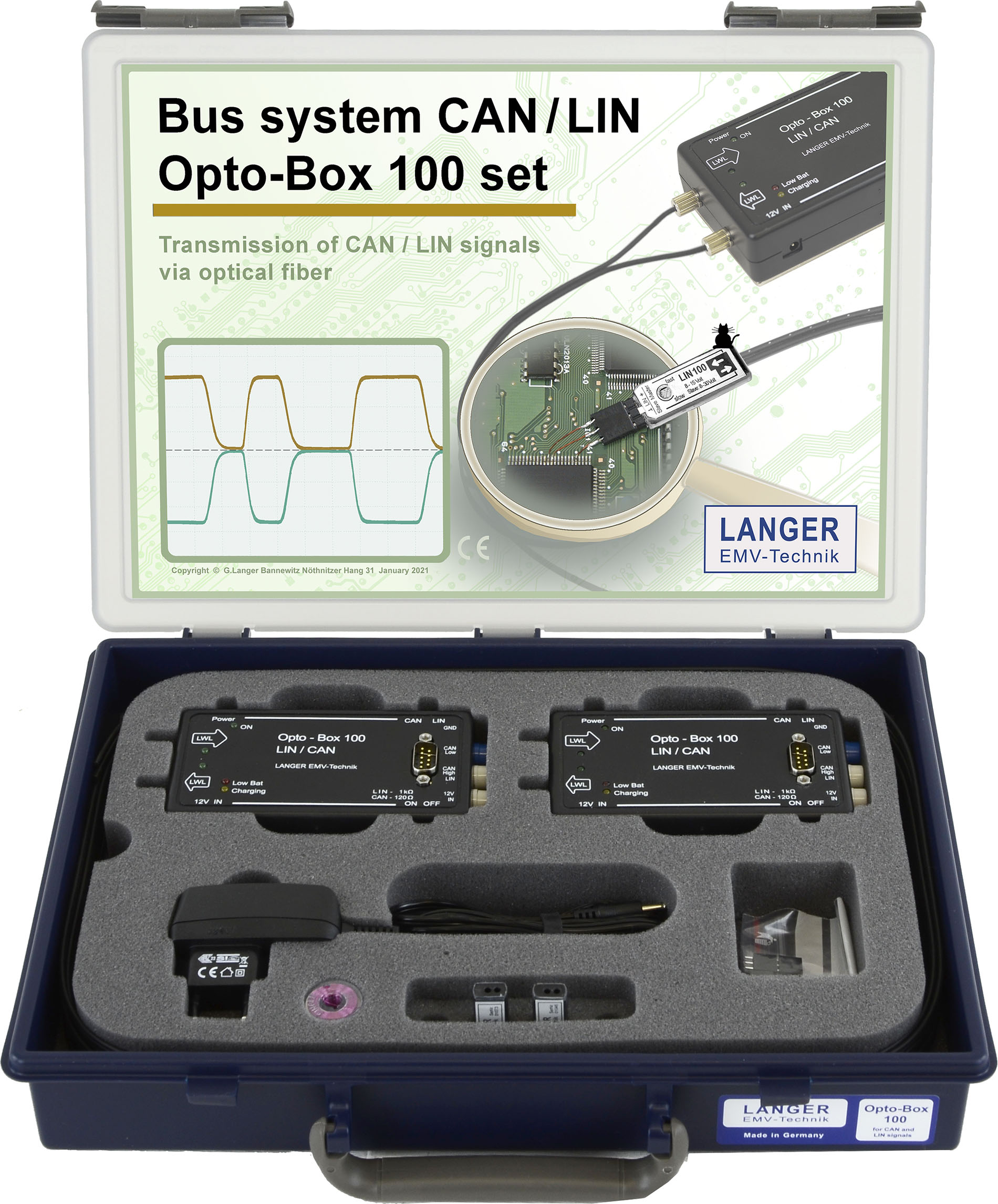

Opto-Box 100 LIN and CAN
-
-

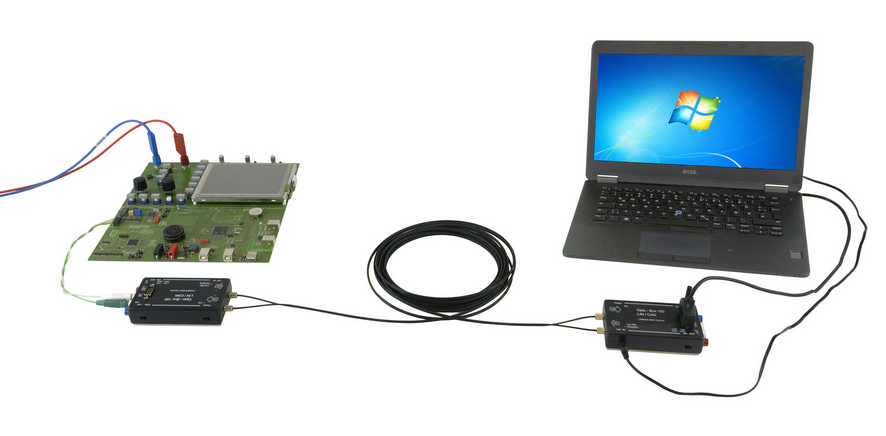

Application of OB 100 set -

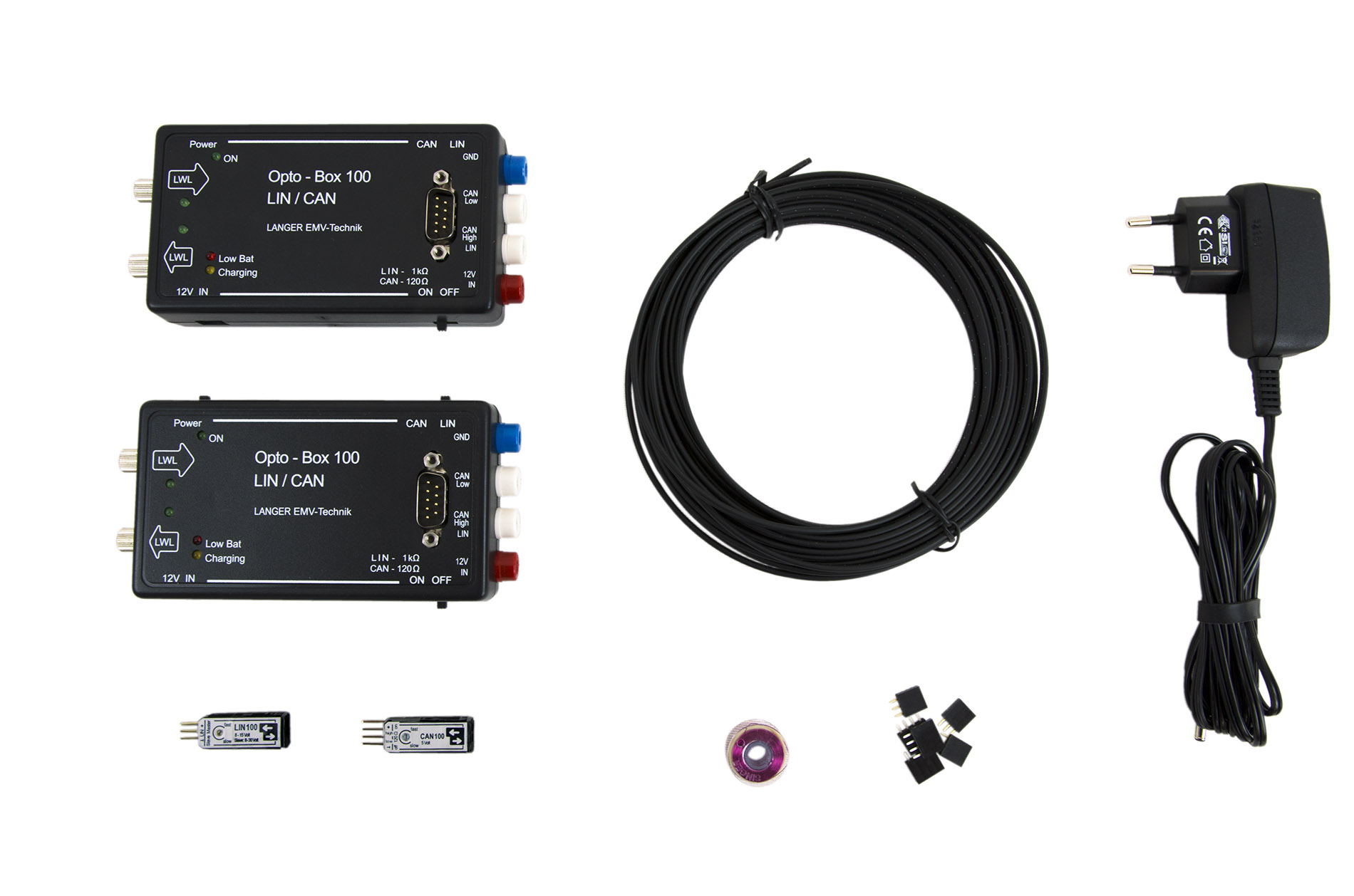

Scope of delivery OB 100 set
Short description
The Opto-Box 100 converts electrical CAN or LIN signals into optical signals.
By using two Opto-Box 100, it is easy to split up an existing cable connection and replace a section of the cable with a fiber optic connection.
By combining the OB 100 with a LIN 100 or CAN 100 sensor, a very high disturbance immunity of the respective signal connection can be achieved.
Scope of delivery
- 2x OB 100, Opto-Box 100
- 1x CAN 100, Optical Fiber Probe
- 4x adapter socket, 4-poles, Adapter Socket, 4-Pole
- 1x LIN 100, Optical Fiber Probe
- 4x adapter socket, 3-poles, Adapter Socket, 3-Pole

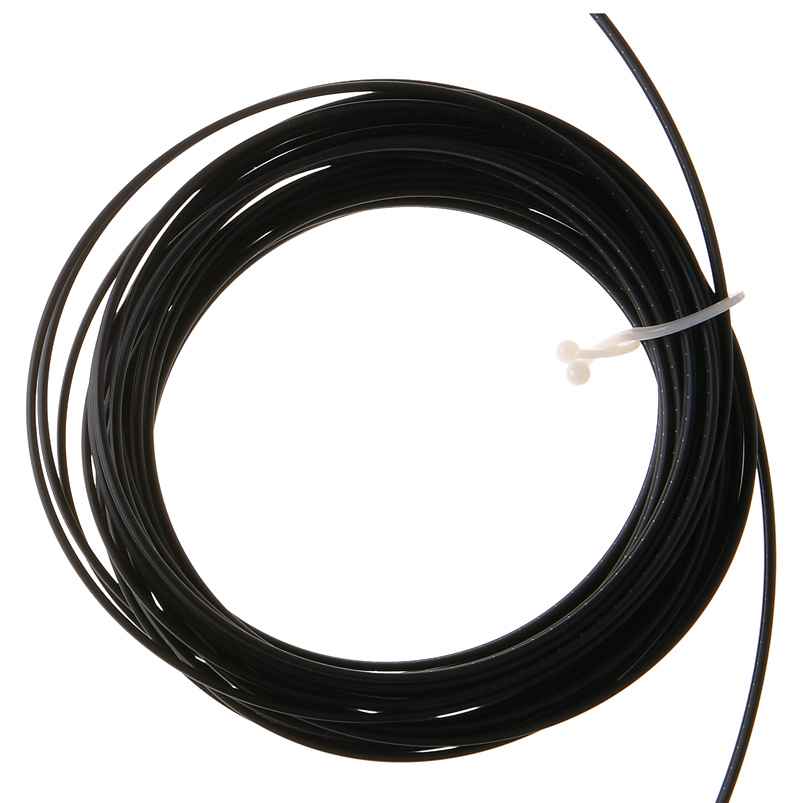

- 1x LWL double 10 m, Optical Fiber, Double 10 m
- 1x Wire CuL, Enamelled Copper Wire
- 1x NT Ex EU, Power Supply Unit
- 1x OB 100 set m, User manual
- 1x A4 case, System Case
Scope of delivery details
-
OB 100

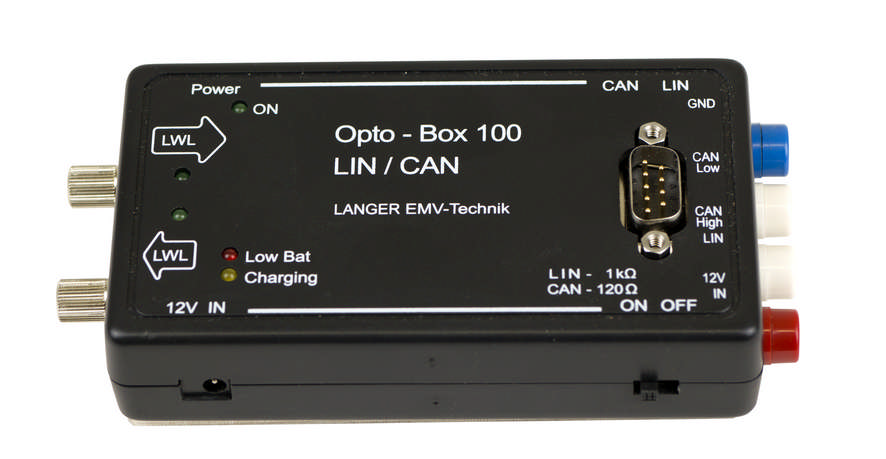

Opto-Box 100
The Opto-Box 100 converts electrical CAN or LIN signals into optical signals.
-
CAN 100

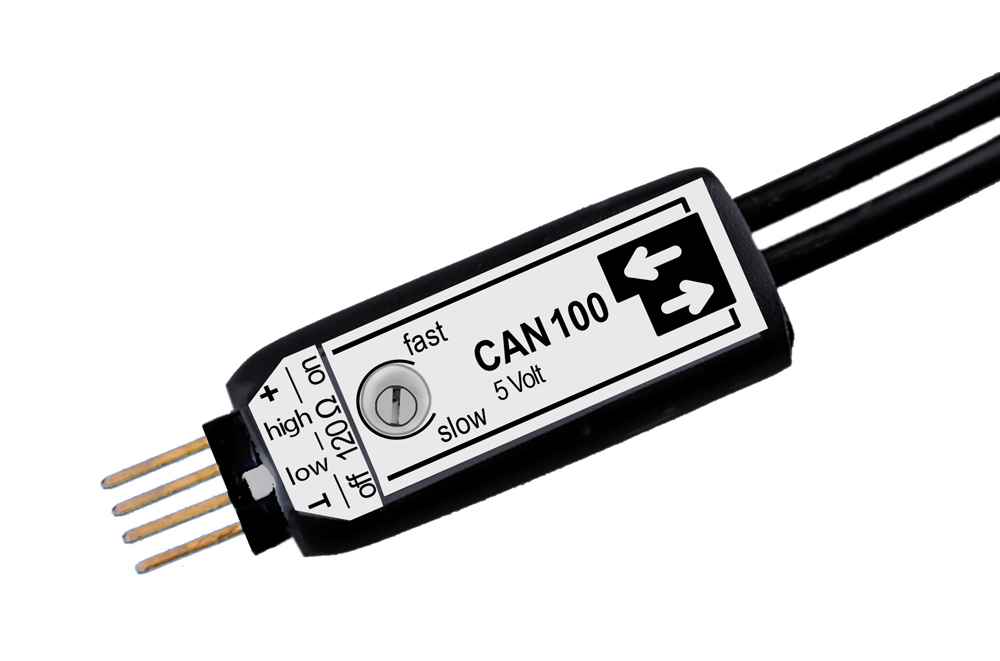

Optical Fiber Probe
The CAN 100 optical fiber probe facilitates potential free signal transmission according to CAN standards. The very small probe head is installed directly into the assembly. The bidirectional optical transmission path achieved through the double-plastic optical fiber cable is suitable for the signal…
-
LIN 100
Optical Fiber Probe
The LIN 100 optical fiber field bus allows for potential free signal transmission according to LIN standards. The very small probe head is installed directly in the assembly. The bidirectional optical transmission path achieved through a double-plastic optical fibre cable is suitable for the signal …
-
OB 100 set m
User manual
-
A4 case
System Case
