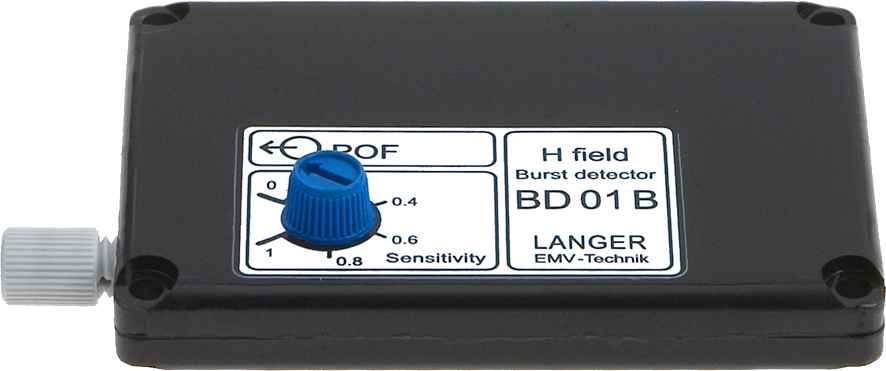

The BD 01B Burst detector detects the magnetic field of a Burst- or ESD current pulse. The detector is highly sensitive allowing for stepless variability. Its small size makes it possible to place it into cable ducts or enclose it in cable harnesses.
On the BD 01B a connector for a fibre optic cable (LWL) is provided. The magnetic pulse received is transformed into a light pulse and then led via the fibre optic cable to a signal analyser. E.g. the signal can be recorded or used for switching off the system.
|Max. optical fibre length||20 m|
|Sizes (L x W x H)||(50 x 82 x 15) mm|
