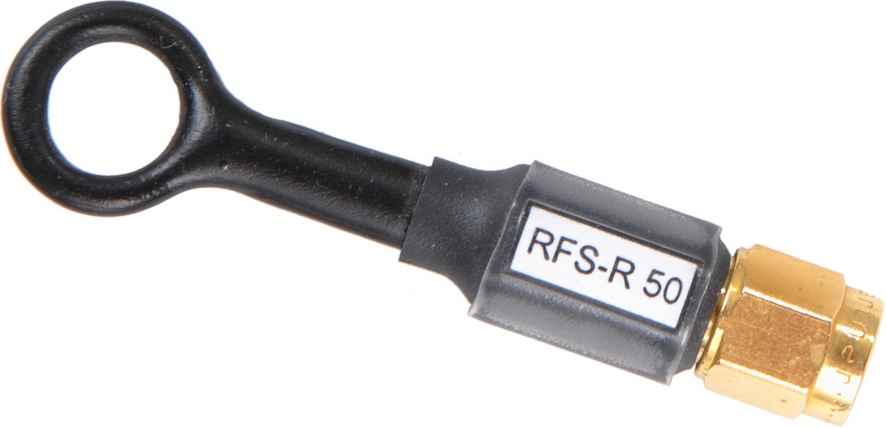

RFS-R 50
扫描探头（30MHz - 3GHz）
Short description
LF-R 50型磁场探头适用于检测约3cm范围内的组装件、设备或电缆。这种磁场探头会把较大的元件识别为干扰源。
The RFS-R 50 is a passive near-field probe. It has a sheath current attenuation and is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. It does not have an internal terminating resistance.
Technical parameters
| 频率范围 | 30 MHz ... 3 GHz |
| 探头尺寸 | Ø 10 mm |
| 输出接口 | SMA, male, plug |
| 长度 | ≈ 55 mm |

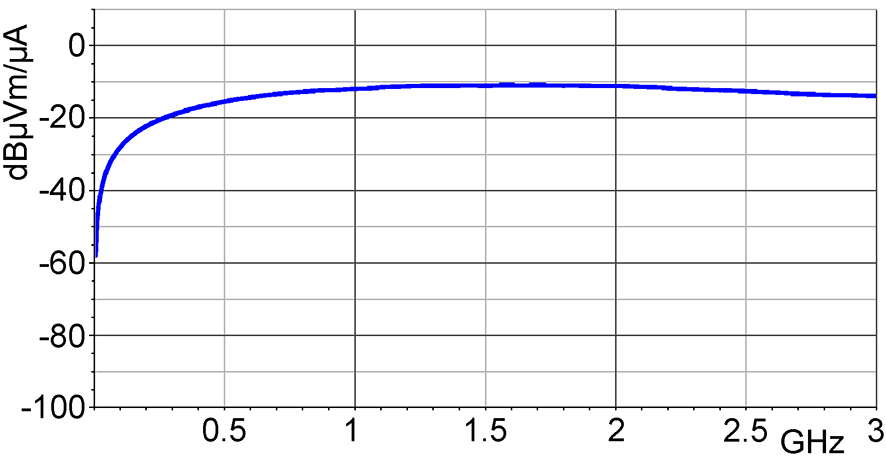

| 频率特性 |
|
| 磁场校正曲线 [dBµA/m] / [dBµV] |
![磁场校正曲线 [dBµA/m] / [dBµV]](/fileadmin/Bilder300/Disturbance emission_near field probe_RFS-R 50_H-field correction curve_en_wGM.png?v=1761830853767)
|
| 电流校正曲线 [dBµA] / [dBµV] |
![电流校正曲线 [dBµA] / [dBµV]](/fileadmin/Bilder300/Disturbance emission_near field probe_RFS-R 50_current correction curve_en_wGM.png?v=1761830853767)
|
|
|
