XF-U 2.5-1

磁场探头（30MHz-6GHz）

Send enquiry Datasheet
  • XF-U 2.5-1, 磁场探头（30MHz-6GHz）
  • Probe head
    Probe head

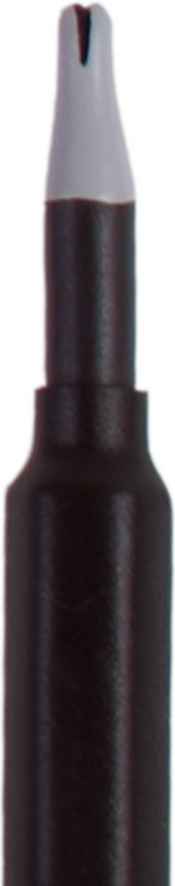

XF-U 2.5-1, 磁场探头（30MHz-6GHz） Probe head
  • XF-U 2.5-1, 磁场探头（30MHz-6GHz）
  • Probe head
Short description

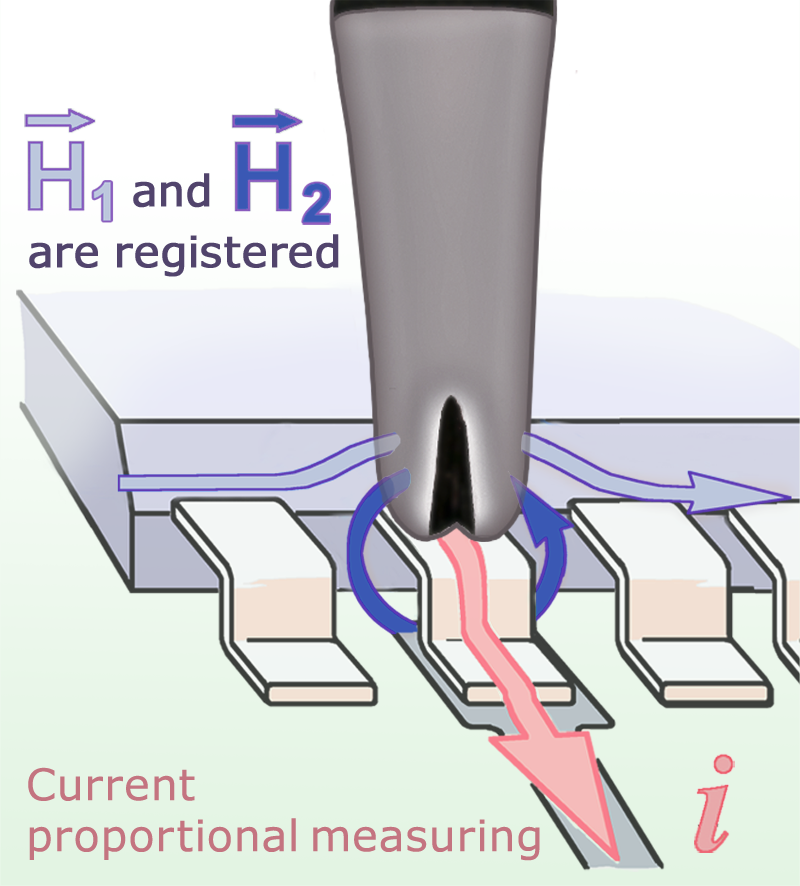

XF-U 2.5-1型磁场探头是一个近场探头，用于选择性测量导线、SMD组件和IC引脚中的高频电流。这个探头有一个大约0.5mm宽的磁场敏感缺口，测量时将这个缺口放在布线、IC或者电容器的连接点上。

The XF-U 2.5-2 is a passive near-field probe that is designed for SMD components (pins). The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe has an internal terminating resistance.

Technical parameters
频率范围 30 MHz ... 6 GHz
分辨率 ≈ 0.5 mm
探头尺寸 Ø ≈ 4 mm
输出接口 SMA, female, jack
重量 15 g
频率特性 [dBµV] / [dBµA/m] 频率特性 [dBµV] / [dBµA/m] 频率特性 [dBµV] / [dBµA/m]
磁场校正曲线 [dBµA/m] / [dBµV] 磁场校正曲线 [dBµA/m] / [dBµV] 磁场校正曲线 [dBµA/m] / [dBµV]
电流校正曲线 [dBµA] / [dBµV] 电流校正曲线 [dBµA] / [dBµV] 电流校正曲线 [dBµA] / [dBµV]
