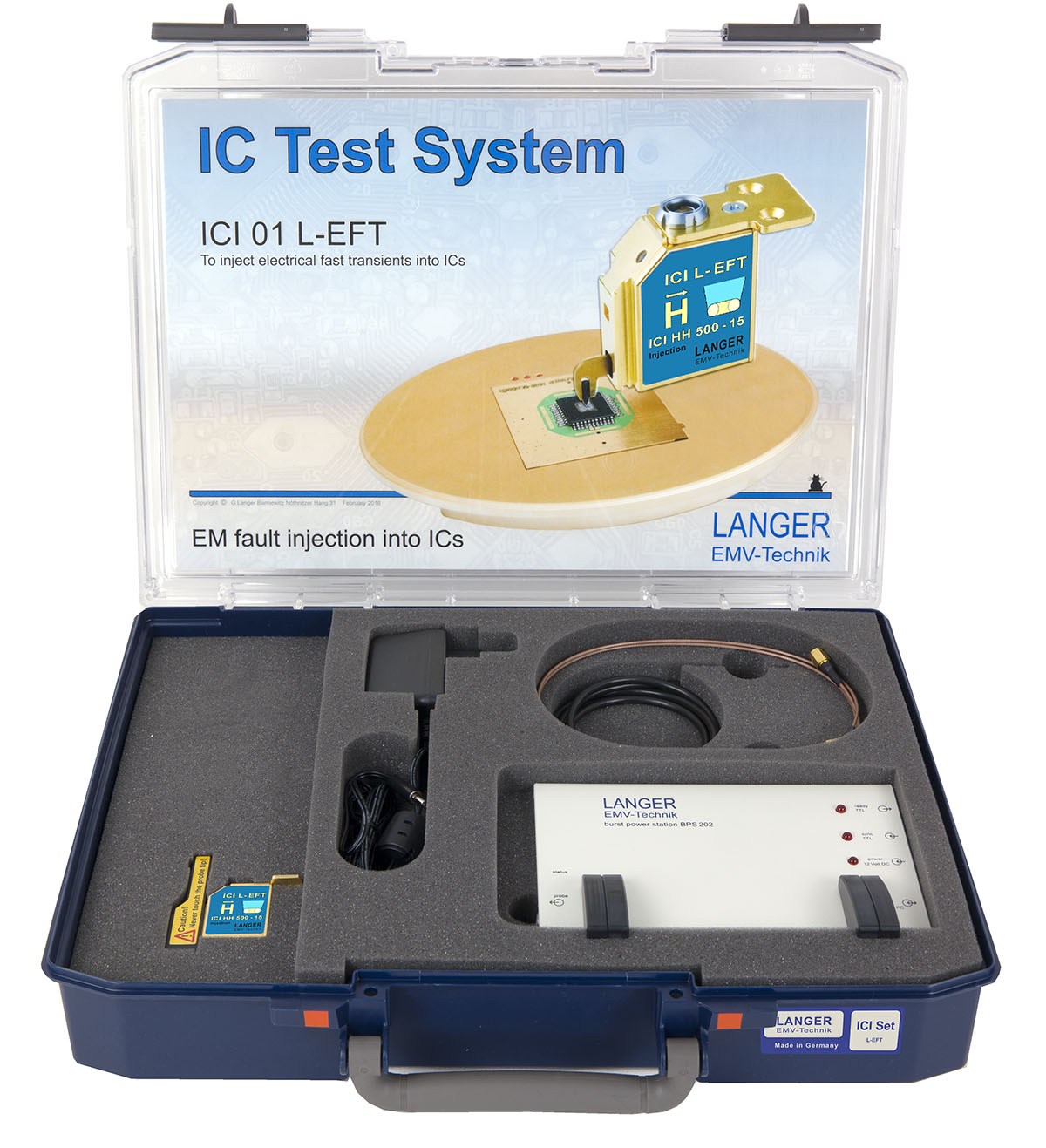

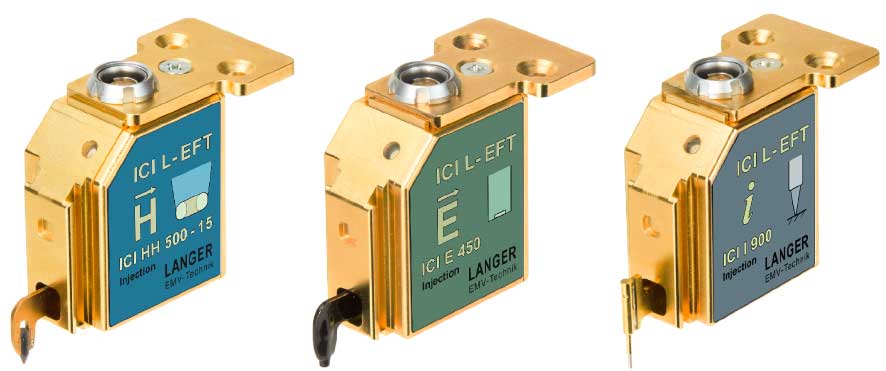

ICI 01 L-EFT set

集成电路Langer电磁脉冲耦合

Send enquiry Datasheet
  • ICI 01 L-EFT set, 集成电路Langer电磁脉冲耦合

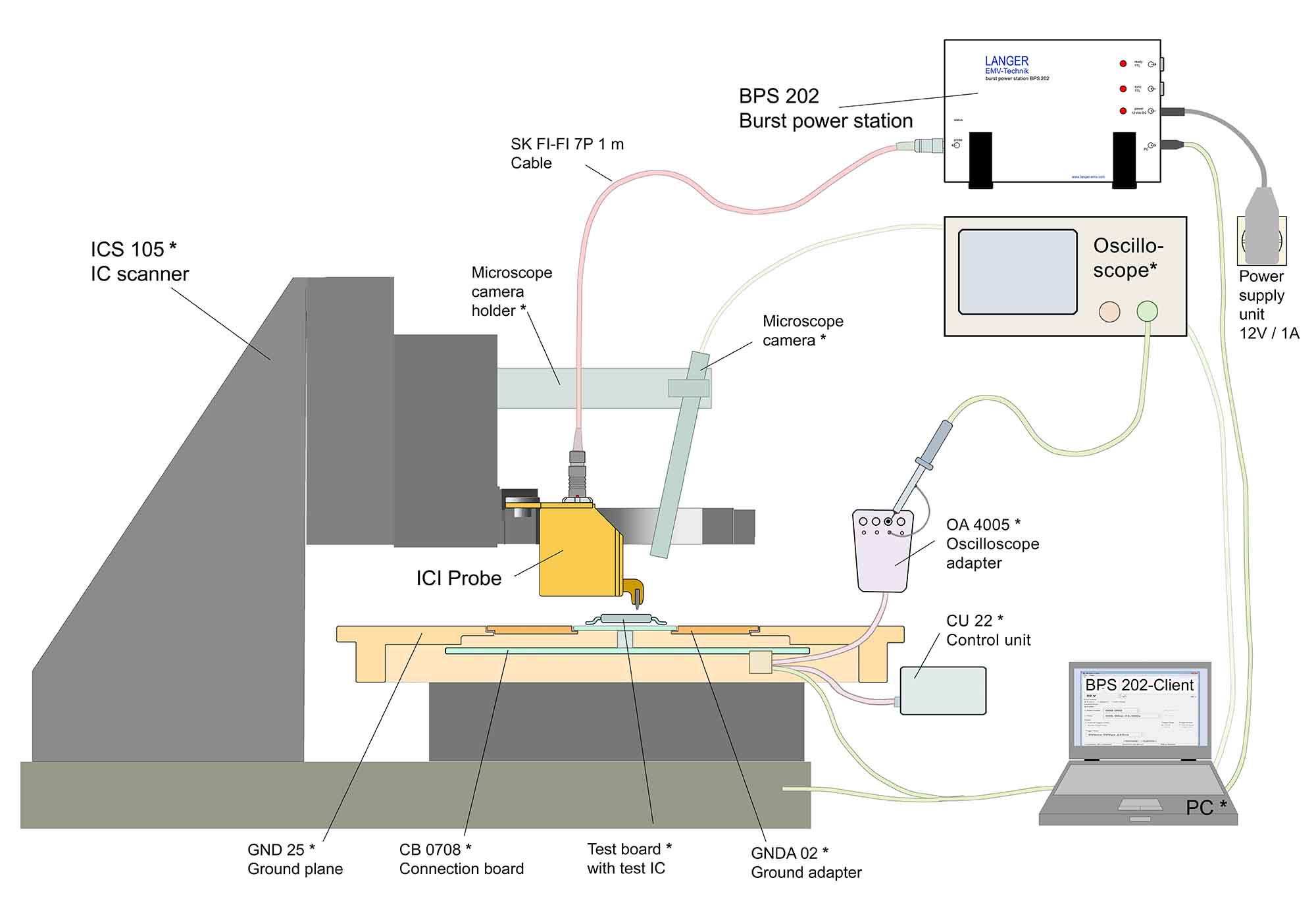

  • Schematic set-up with ICI HH500-15 pulse magnetic field source (the devices marked with * are not included in the scope of delivery)
    Schematic set-up with ICI HH500-15 pulse magnetic field source (the devices marked with * are not included in the scope of delivery)

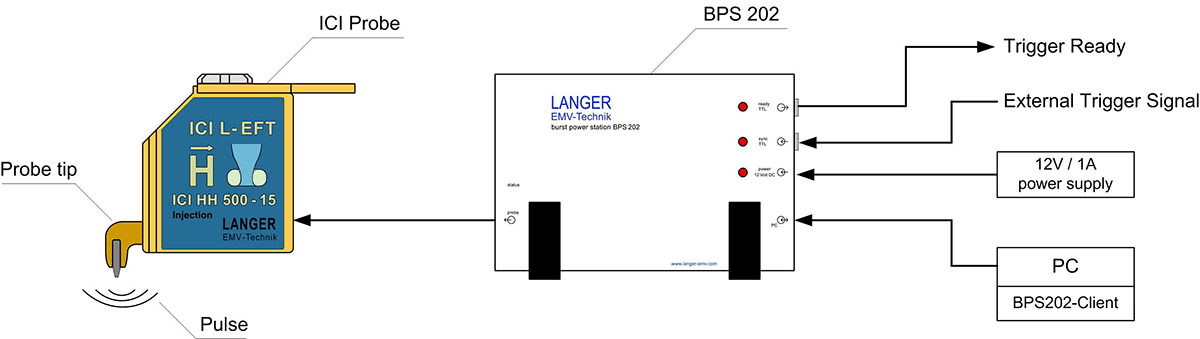

  • Schema of set-up
    Schema of set-up

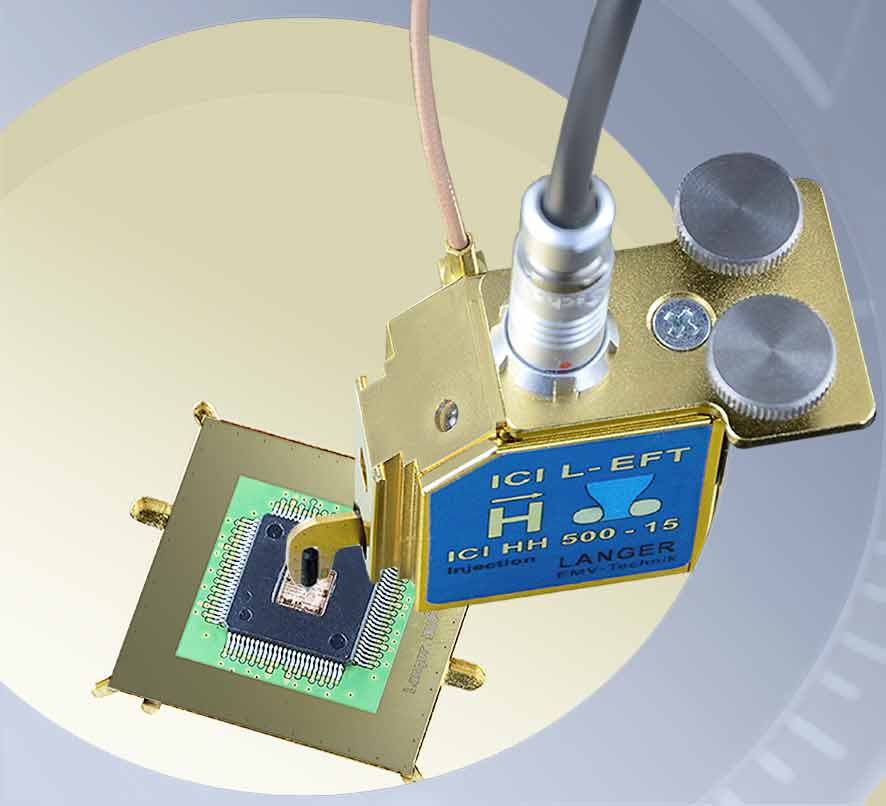

  • ICI probe in application
    ICI probe in application
ICI 01 L-EFT set, 集成电路Langer电磁脉冲耦合 Schematic set-up with ICI HH500-15 pulse magnetic field source (the devices marked with * are not included in the scope of delivery) Schema of set-up ICI probe in application
  • ICI 01 L-EFT set, 集成电路Langer电磁脉冲耦合
  • Schematic set-up with ICI HH500-15 pulse magnetic field source (the devices marked with * are not included in the scope of delivery)
  • Schema of set-up
  • ICI probe in application
Short description

Preview for 2017

ICI 01 L-EFT磁场源将快速瞬变脉冲通过磁场耦合到集成电路中（开放式芯片），因此可以选择性地对集成电路的某个区域进行抗干扰性测试。对于安全关键电路，还可以进行模拟旁路通道干扰。该探头具备以下特点：
· 分辨率高达500微米，因此可以对电路中的某一部分有针对性地进行测试。
· 脉冲抖动的触发值极低，因此也能对程序进程中的快速过程有针对性地施加影响。

使用该探头需要一台电脑。通过附带的ICI-Client客户端软件或者DLL控制操作ICI 01探头。

Delivery content
Technical parameters
脉冲参数
上升时间 < 2 ns
重复频率 0.1 Hz - 20 kHz
极性 (set by software) + / - / alternating
触发器脉冲延迟 (Bypass Modus - Delay Line)
min. 触发器脉冲延迟 (typ.) 100 ns
max. 触发器脉冲延迟 (typ.) 450 ns
max. Jitter (typ.) ± 1 ns
触发器脉冲延迟 (Timer Mode)
min. 触发器脉冲延迟 (typ.) 200 ns
max. 触发器脉冲延迟 (typ.) 100 ms
max. Jitter (typ.) ± 15 ns
触发器延迟的最小步距 10 ns

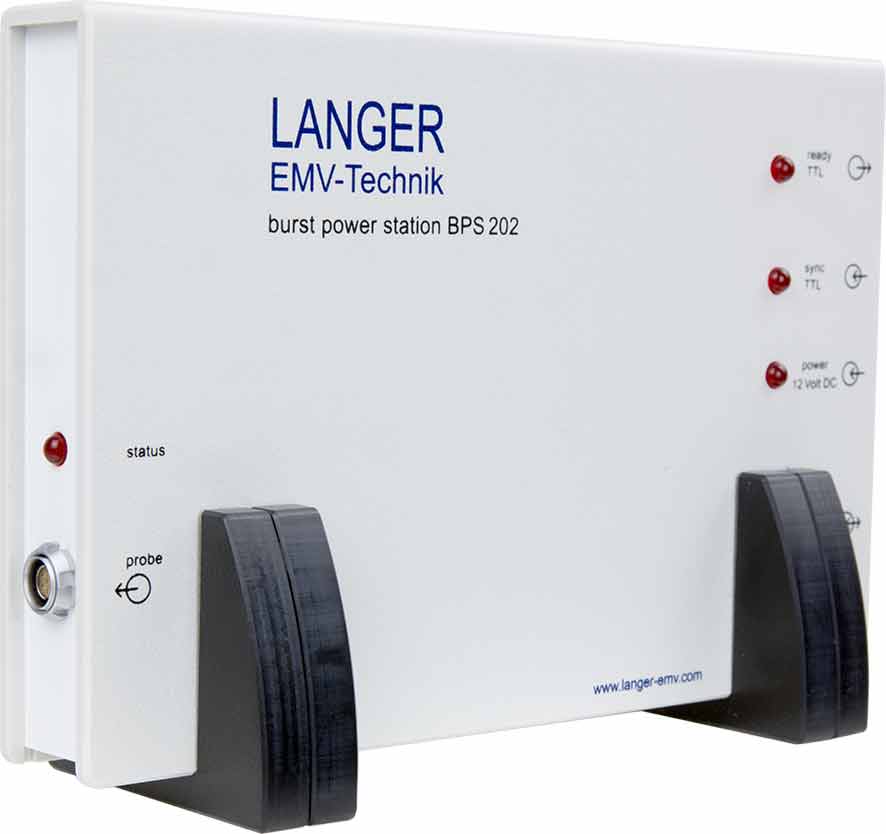

电源电压 BPS 202
软件 BPS 202-Client / DLL (32 Bit / 64 Bit)
Win XP SP3 or higher
Delivery content details
