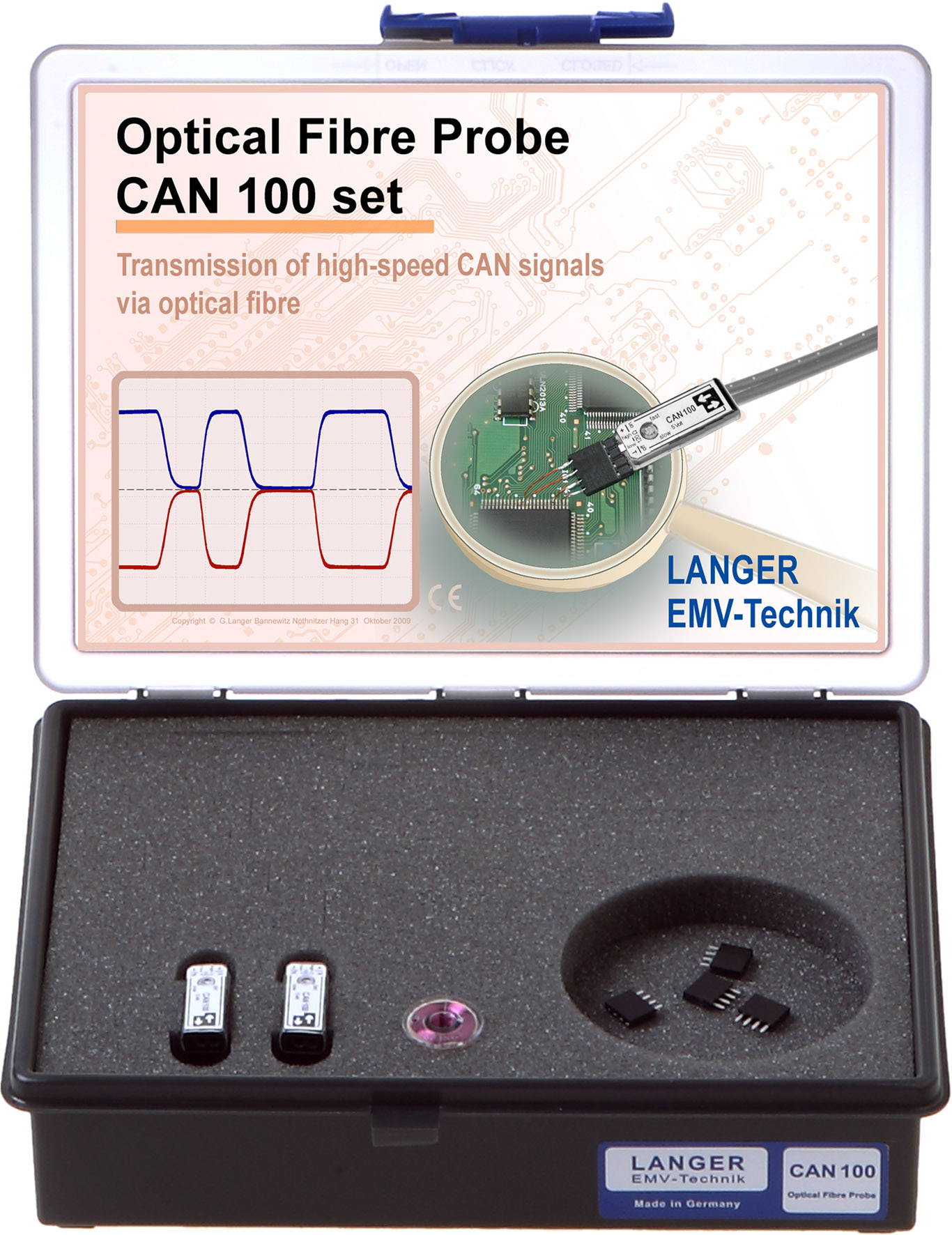

CAN 100 set
-
-

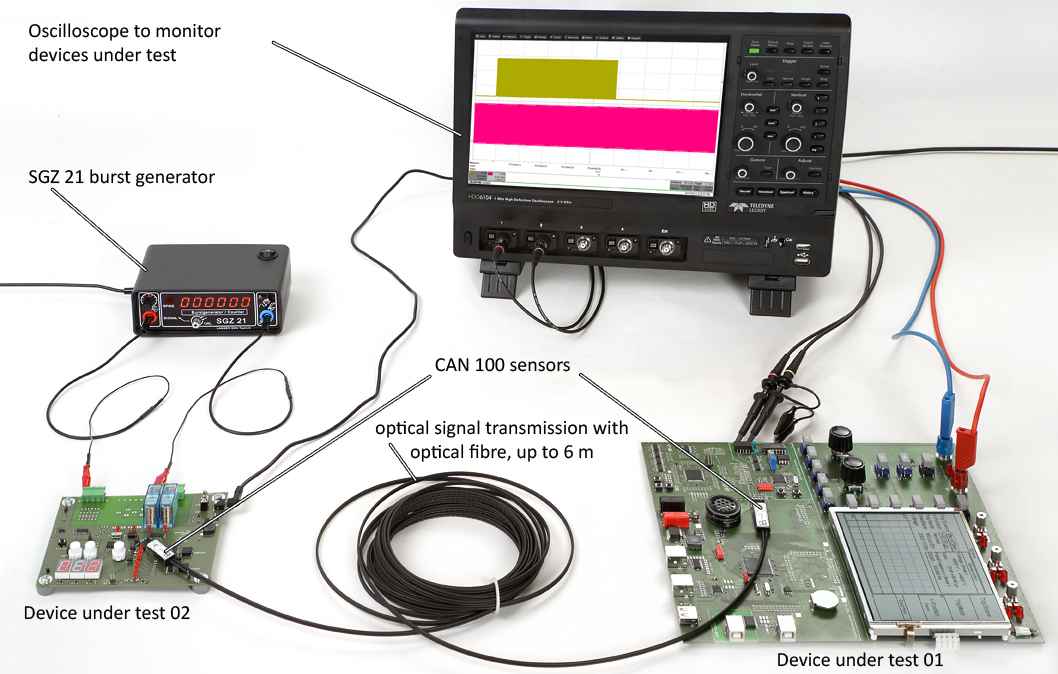

Application with CAN 100 and SGZ -

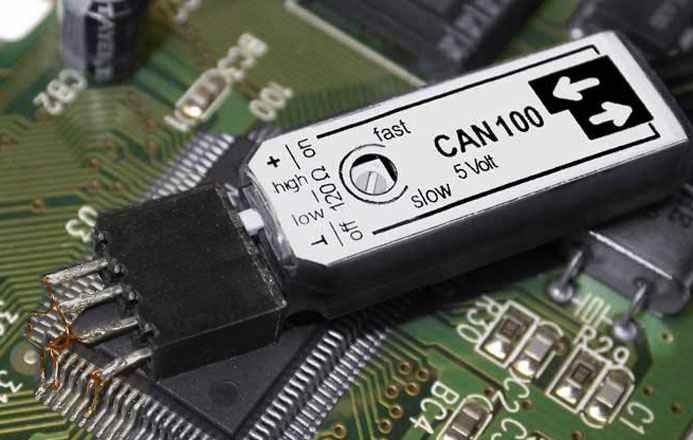

Application with CAN 100 detail -

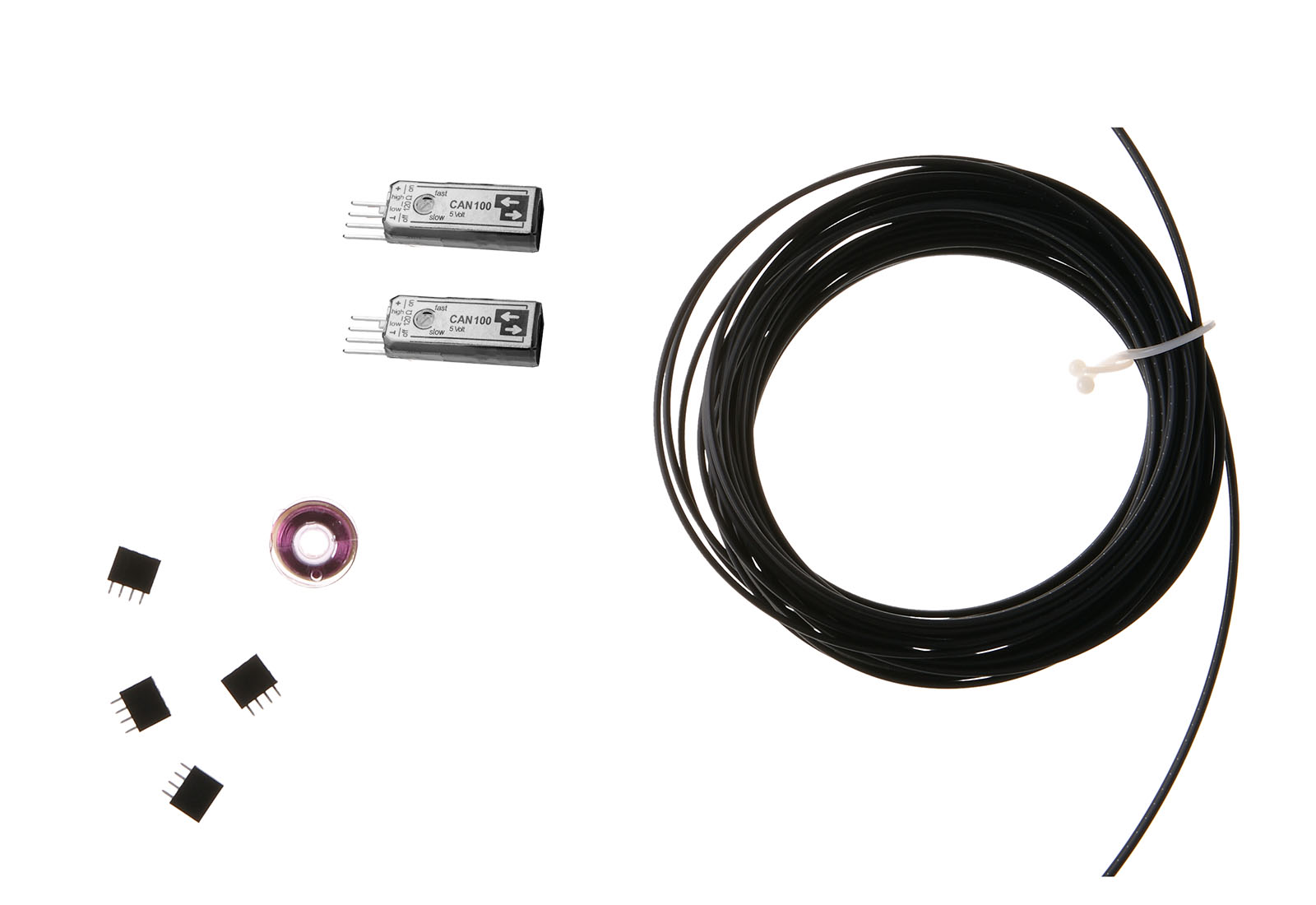

Scope of delivery Set CAN 100
Delivery content
- 2x CAN 100, 光纤探头 CAN现场总线
- 1x LWL double 10 m, 10m 双通道光纤
- 1x CAN 100 acc
- 1x A5 case
- 1x CAN 100 m
Recommended products
Technical parameters
| CAN 100 光纤探头 | |
| 传输范围 | 0 ... 1 Mbit/s |
| 光纤接口 | 2 x Ø 2.2 mm |
| CAN总线收发器 | SN65HVD251 |
| 电源电压 | 5 V |
| 电流输入 | max. 80 mA |
| 光线长度 | max. 10 m (max. 6 m at 1 Mbit/s) |
