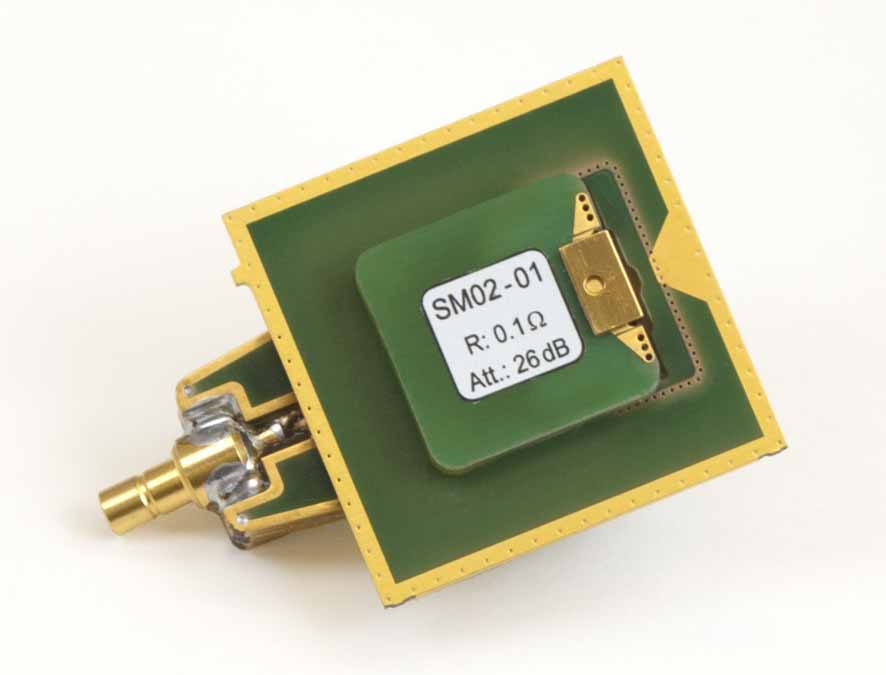

SM 02-01型分流器用于测量频率小于3 GHz 的快速瞬变电流脉冲。用它可以测量干扰发生器发出的电流脉冲。例如猝发序列或电快速瞬变发生器，或者ESD发生器。
The shunt is a passive measurement device. It transforms RF current into the measuring voltage UAV. The shunt is designed for connection with spectrum analyzers, oscilloscopes or comparable measurement devices.
It is recommended to use the shunt with the GND 25 ground plane and the GNDA 02 ground adapter.
