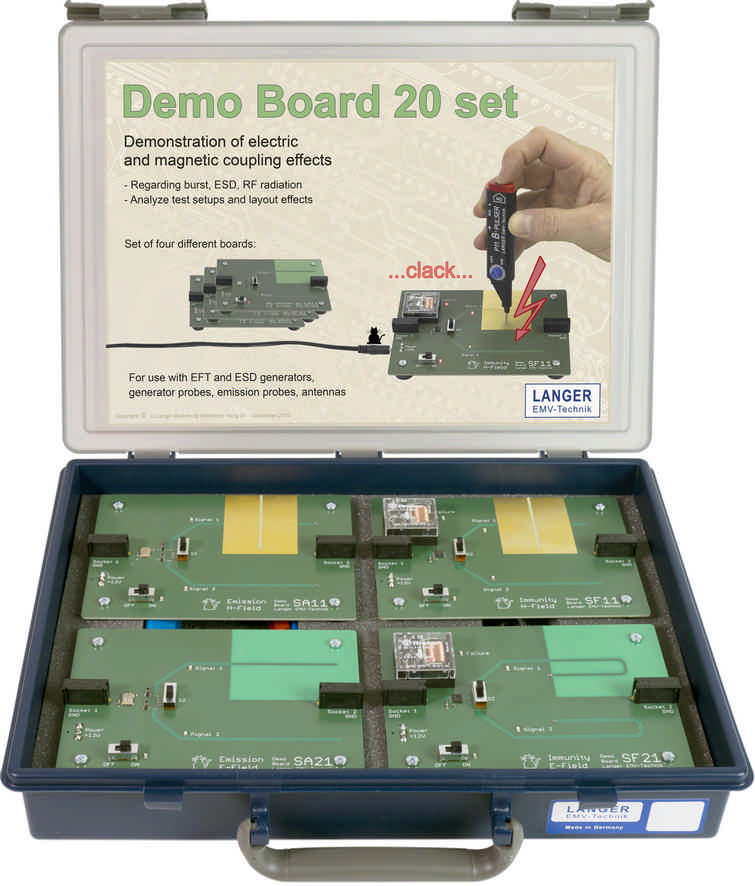

|DB SA 11||Magnetic field emission|
|DB SA 21||Electric field emission|
|DB SF 11||Susceptible to magnetic field|
|DB SF 21||Susceptible to electric field|

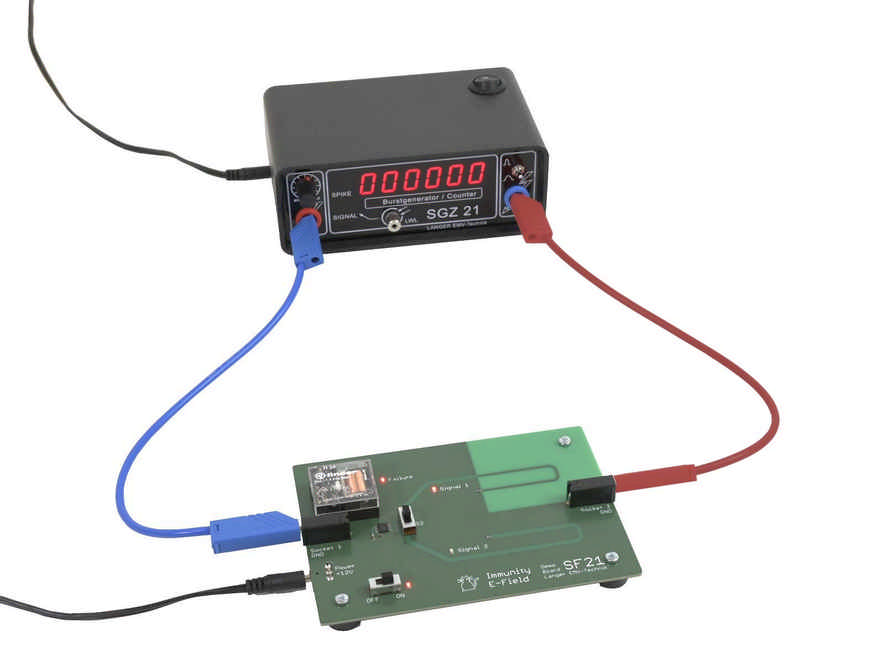

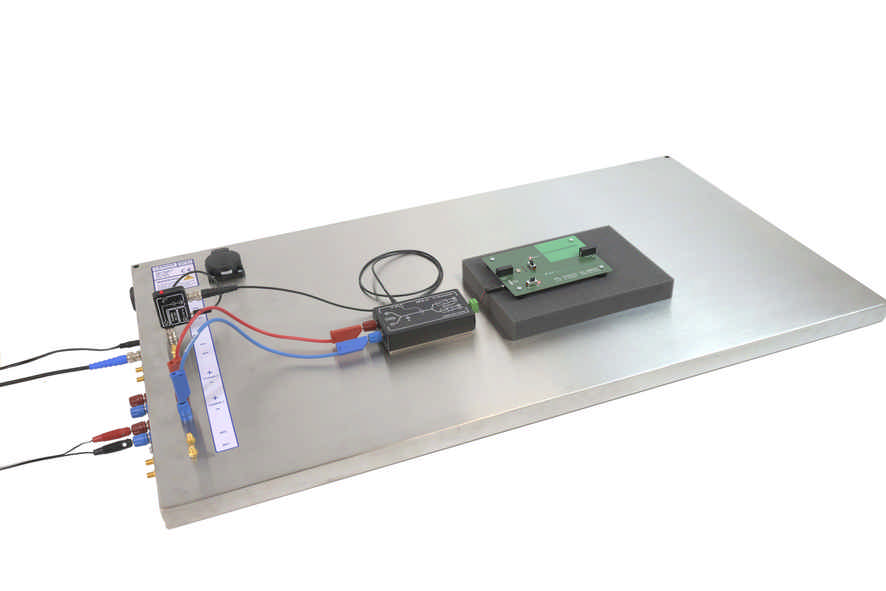

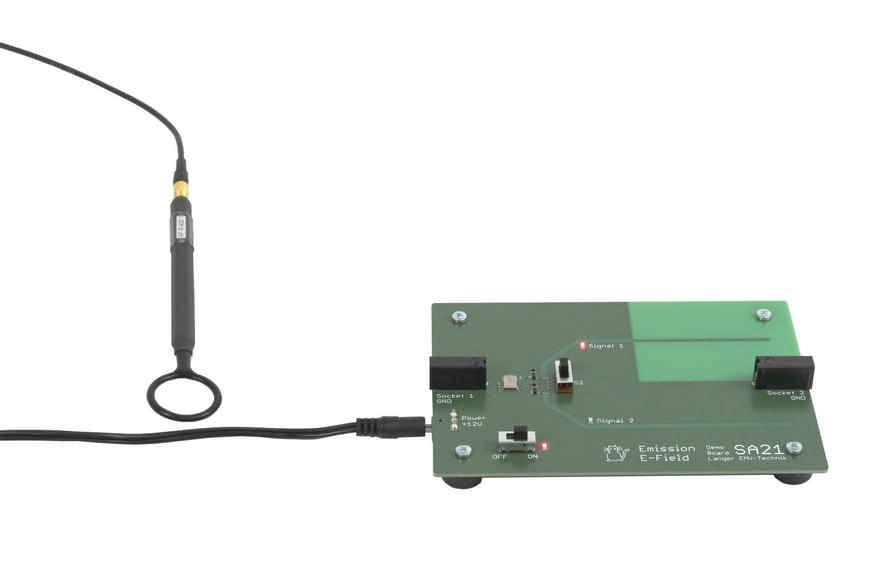

The DB 20 set’s user manual presents various experiments and measurement set-ups using the development systems E1 Immunity and ESA1 Emission, the PT4 burst transformer and various near-field probes from Langer EMV-Technik GmbH. These measurement set-ups are suggestions. The experiments and test set-ups can be simulated and modified in many ways with other measuring devices.
|尺寸 (L x W x H)||(338 x 57 x 260) mm|
